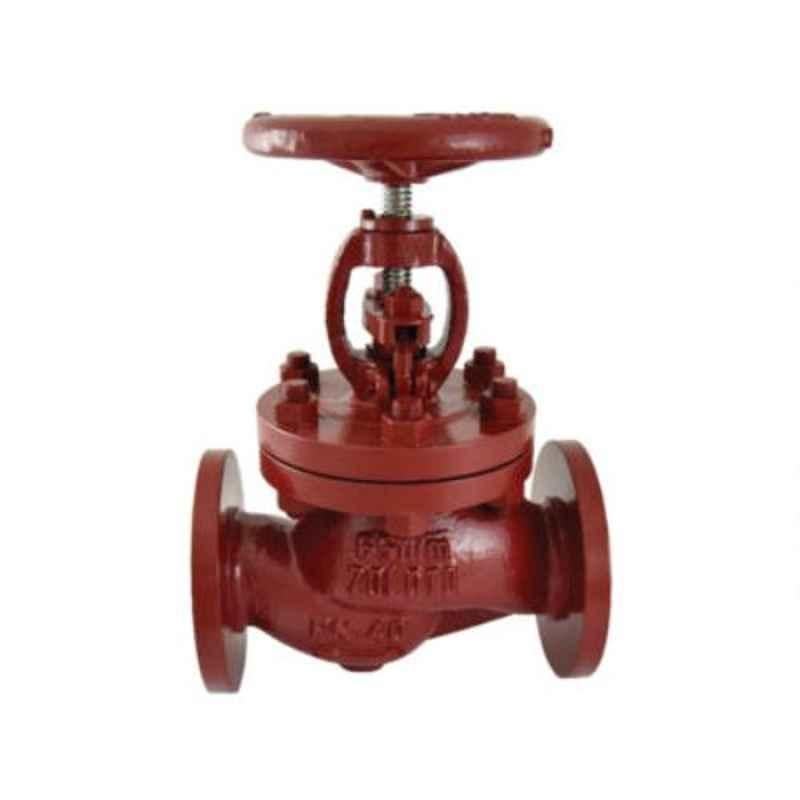

Zoloto 15mm Cast Steel Flanged Globe Steam Stop Valve, 1071

Name: Zoloto 15mm Cast Steel Flanged Globe Steam Stop Valve, 1071
Brand: Zoloto
SKU: MSN457MY7E6Q9J
Price: 4912 INR
Availability: OutOfStock

₹4,912 (Incl. of all taxes)

₹4,166 ₹746 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Flanged Ends to Din 2545 Pn�40.
Straight Pattern, Outside Screw, Yoke Type, Rising Stem & Bolted Bonnet.
Minimum Pressure Drop Inside the Body Due to Streamlined Body Design & Handwheel Operated..

Product Specifications

Brand	Zoloto
Body Material	Cast Iron
End Connection	Flanged Ends
Item Code	1071
Material	Nut: Carbon Steel Washer: Carbon Steel Handwheel: Malleable Iron Stem: Stainless Steel Yoke Bush: Aluminium Bronze Locking Screw: Carbon Steel Gland Flange: Cast Steel Gland: Stainless Steel Bonnet: Cast Steel Gland Packing: Braided�Graphite Gasket: Spiral Wound S.S (Type 316) Graphite�Filled Back Seat Bush: Aluminium Bronze
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	15 mm
Size (Inch)	1/2 inch
Suitable For	Water Oil Steam
Test Pressure	Shell:870 psig Seat:580 psig
Type	Flanged
Working Temperature	425 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Stop Valve
Dimensions LxWxH	21x13x19 cm
Weight	10.2 kg

Show All Specifications

Product Details

The Zoloto 15mm Cast Steel Flanged Globe Steam Stop Valve, 1071 is a high-quality globe valve designed for a variety of applications, including water, oil, and steam. This valve features flanged ends to Din 2545 Pn?40, a straight pattern, outside screw, yoke type, rising stem & bolted bonnet, and a handwheel for easy operation. The streamlined body design ensures minimal pressure drop inside the valve. With a working temperature of 425 deg C and a size of 1/2 inch, this valve is reliable and efficient for your industrial needs. Choose Zoloto for superior performance and durability.
