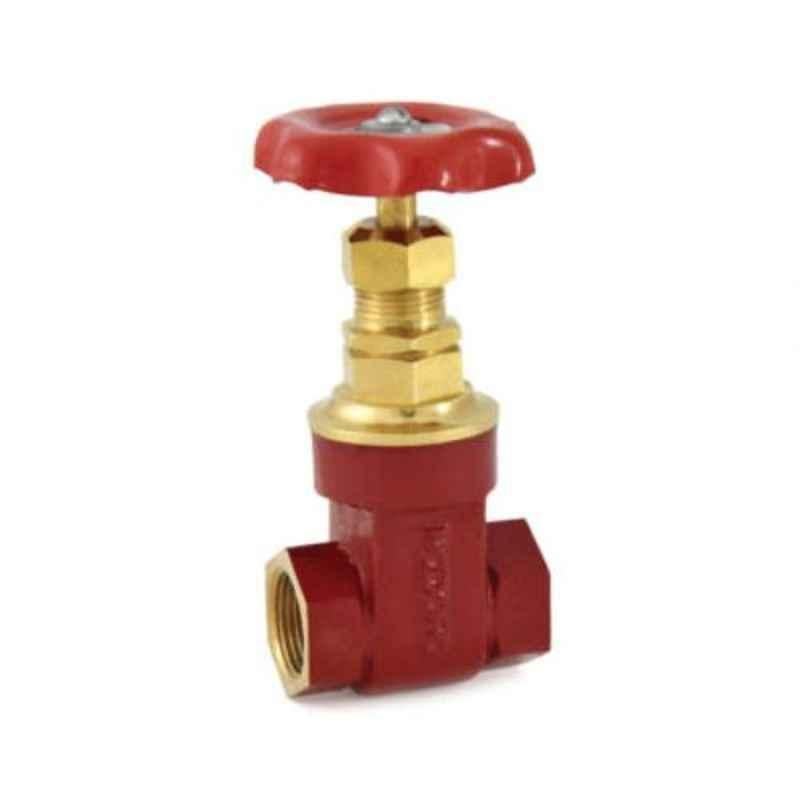

Zoloto 15mm Class-2 Bronze Screwed Gate Valve, 1035 A

Name: Zoloto 15mm Class-2 Bronze Screwed Gate Valve, 1035 A
Brand: Zoloto
SKU: MSNM9XYGQ62MKJ
Price: 1389 INR
Availability: OutOfStock

₹1,389 (Incl. of all taxes)

₹1,179 ₹210 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Screwed Female Ends to is 554 / Bs 21 / Iso 7.
Screwed in Bonnet, Inside Screw, Non-Rising Stem, Integral Seat, Solid Wedge.
Designed Sheet Metal Handwheel for A Firm Grip & Convenient Operation.
Premium Quality Ptfe Gland Packing & Design Standard is 778 & Class-1..

Show All Key Features

Product Specifications

Brand	Zoloto
Size	15 mm
Body Material	Bronze
End Connection	Screwed End
Item Code	1035 A
Suitable For	Water Oil
Additional Details	Screw / Bolt: Carbon Steel (Zinc Plated) Washer: Carbon Steel (Zinc Plated) Handwheel: Sheet Metal (Powder Coated) / Cast Iron Stem: Forged Brass Gland Nut: Forged Brass Gland: Forged Brass Gland Packing: PTFE Stuffing Box: Forged Brass Bonnet: Forged Brass Wedge: Bronze Name Plate: Aluminium End Type: Female Screwed
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	1/2 inch
Test Pressure	Shell:2.4 MPa Seat:1.6 MPa
Type	Screwed
Working Temperature	45 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Valve
Dimensions LxWxH	6x4x30 cm
Weight	2.7 kg

Show All Specifications

Product Details

The Zoloto 15mm Class-2 Bronze Screwed Gate Valve, 1035 A is a top-quality valve designed for reliable performance. This gate valve features a size of 15mm with screwed female ends according to IS 554 / BS 21 / ISO 7 standards. It has a screwed bonnet, non-rising stem, integral seat, and a solid wedge made of bronze. The handwheel is designed with sheet metal for a secure grip and easy operation. The valve also comes with premium quality PTFE gland packing and conforms to design standard IS 778 & Class-1. Suitable for use with water and oil, this gate valve is a durable and efficient choice for your plumbing needs.
