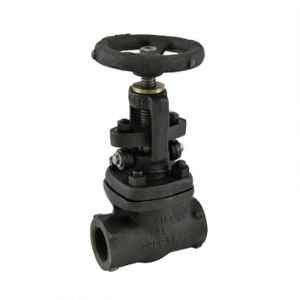

Zoloto 15mm Forged Steel Class-800 Full Bore Gate Valve, 1075A

Name: Zoloto 15mm Forged Steel Class-800 Full Bore Gate Valve, 1075A
Brand: Zoloto
SKU: MSNEKPQD4MVW52
Price: 2677 INR
Availability: OutOfStock

₹2,677 (Incl. of all taxes)

₹2,271 ₹406 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Design Standard Api 602 & Bsen Iso 15761.
Body & Bonnet Are Phosphated, to Ensure Maximum Resistance from Rust.
Bolted Bonnet, Outside Screw, Yoke Type, Rising Stem.
Screwed Female Ends to Bspt / Npt / Socket Welded to Ansi B16.11.

Show All Key Features

Product Specifications

Brand	Zoloto
Size	15 mm
Body Material	Forged Carbon Steel
End Connection	Screwed End
Item Code	1075A
Suitable For	Water Oil Steam
Additional Details	Body Seat Ring: Stainless Steel Wedge (Solid): Stainless Steel Stem: Stainless Steel Gasket: Spiral Wound S.S. (Type 316) Graphite Filled Bonnet: Forged Carbon Steel Bonnet Nut: Alloy Steel Stud: Alloy Steel Gland Packing: Non Asbestos Graphite with Corrosion Inhibitor Gland: Stainless Steel Gland Flange: Carbon Steel Eye Bolt: Stainless Steel End Type: Female Screwed
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	1/2 inch
Test Pressure	Shell:3000 psig Seat:2200 psig
Type	Screwed
Working Temperature	425 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Gate Valve
Dimensions LxWxH	12x7x3 cm
Weight	5.7 kg

Show All Specifications

Product Details

The Zoloto 15mm Forged Steel Class-800 Full Bore Gate Valve, 1075A is a high-quality gate valve from Zoloto. With a size of 15mm and a 1/2 inch body, this valve is suitable for water, oil, and steam applications. Made of forged carbon steel with stainless steel components, including the seat ring, wedge, and stem, this valve is designed for durability and longevity. The bolted bonnet and rising stem design ensure easy maintenance and operation. Suitable for female screwed ends, this valve meets design standards API 602 and BSEN ISO 15761. Built to resist rust and corrosion, this gate valve is a reliable choice for industrial applications.
