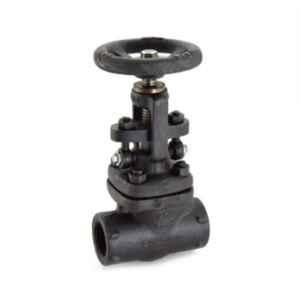

Zoloto 15mm Forged Steel Class-800 Full Bore Globe Valve, 1074A

Name: Zoloto 15mm Forged Steel Class-800 Full Bore Globe Valve, 1074A
Brand: Zoloto
SKU: MSN4K6Z383P3KQ
Price: 2714 INR
Availability: OutOfStock

MRP ₹2,714 (Incl. of all taxes)

₹2,299 ₹415 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Design Standard Api 602 & Bsen Iso 15761.
Body & Bonnet Are Phosphated, to Ensure Maximum Resistance from Rust.
Bolted Bonnet, Outside Screw, Yoke Type, Rising Stem.
Screwed Female Ends to Bspt / Npt / Socket Welded to Ansi B16.11.

Show All Key Features

Product Specifications

Brand	Zoloto
Body Material	Forged Carbon Steel
End Connection	Female Ends
Item Code	1074A
Material	Body: Forged Carbon Steel Body Seat Ring: Stainless Steel Disc: Stainless Steel Stem: Stainless Steel Check Nut: Stainless Steel Gasket: Spiral Wound S.S (Type 316) Graphite Filled Bonnet: Forged Carbon Steel Bonnet Nut: Alloy Steel Stud: Alloy Steel Gland Packing: Non Asbestos Graphite with Corrosion Inhibitor Gland: Stainless Steel Gland Flange: Carbon Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	15 mm
Size (Inch)	1/2 inch
Suitable For	Water Oil Steam Air Gas
Test Pressure	Shell:3000 psig Seat:2200 psig
Type	Screwed
Working Temperature	425 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Globe Valve
Dimensions LxWxH	12x7x3 cm
Weight	5.8 kg

Show All Specifications

Product Details

The Zoloto 15mm Forged Steel Class-800 Full Bore Globe Valve, 1074A is a top-of-the-line screw-type valve designed for maximum durability and performance. With a working temperature of up to 425 deg C, this valve is suitable for a variety of applications including water, oil, steam, air, and gas. The body and bonnet are phosphated to prevent rust, and the bolted bonnet and rising stem design ensure easy maintenance. The valve features screwed female ends for easy installation and is built to industry standards for reliability and long-lasting use. Experience superior quality and efficiency with the Zoloto Globe Valve.
