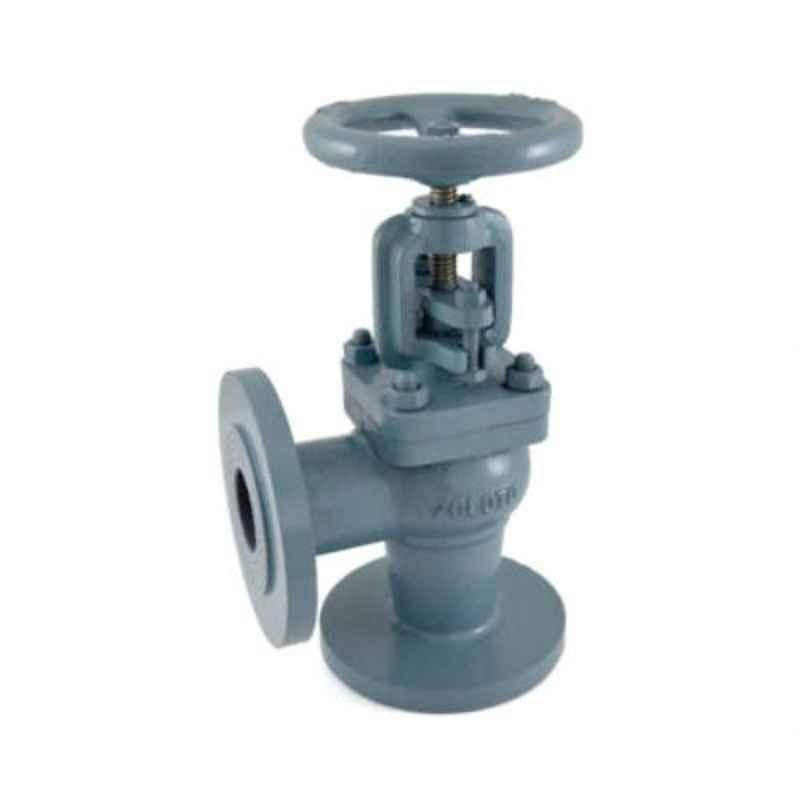

Zoloto 200mm Cast Iron Angle Pattern Flanged Globe Steam Stop Valve, 1066

Name: Zoloto 200mm Cast Iron Angle Pattern Flanged Globe Steam Stop Valve, 1066
Brand: Zoloto
SKU: MSNL5GLZNWDPK4
Price: 43609 INR
Availability: OutOfStock

₹43,609 (Incl. of all taxes)

₹36,956 ₹6,653 GST

MRP ₹62,518 30% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Flanged Ends to Din 2533 Pn 16Rf.
Angle Pattern, Outside Screw, Yoke Type & Rising Stem.
Renewable 13% Cr. Stainless Steel Working Parts.
Provision for Re-Packing Under Pressure & Minimum Pressure Drop Inside the Body Due to Streamlined Body Design.

Show All Key Features

Product Specifications

Brand	Zoloto
Body Material	Cast Iron
End Connection	Flanged Ends
Item Code	1066
Material	Nut: Carbon Steel Washer: Carbon Steel Handwheel: Cast Iron Stem: Stainless Steel Yoke Bush: Bronze Locking Screw: Carbon Steel Gland Flange: Cast Iron Bonnet: Cast Iron Gland Packing: Braided Graphited Asbestos Studs: Carbon Steel Nuts: Carbon Steel Gasket: Steam Jointing Sheet
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	200 mm
Size (Inch)	8 inch
Suitable For	Water Steam
Test Pressure	Shell:370 psig Seat:185 psig
Type	Flanged
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Valve
Dimensions LxWxH	260x156x20 cm
Weight	129.7 kg

Show All Specifications

Product Details

The Zoloto 200mm Cast Iron Angle Pattern Flanged Globe Steam Stop Valve, model 1066, is a top-of-the-line product in the Globe Valves category. With an 8-inch size and the ability to handle temperatures up to 220 deg C, this valve is perfect for water and steam applications. The valve features flanged ends to Din 2533 Pn 16Rf, angle pattern, outside screw, yoke type & rising stem, and renewable 13% Cr. stainless steel working parts. Its streamlined body design ensures minimum pressure drop inside the body, making it highly efficient. Upgrade your industrial or commercial piping system with the reliable Zoloto valve.
