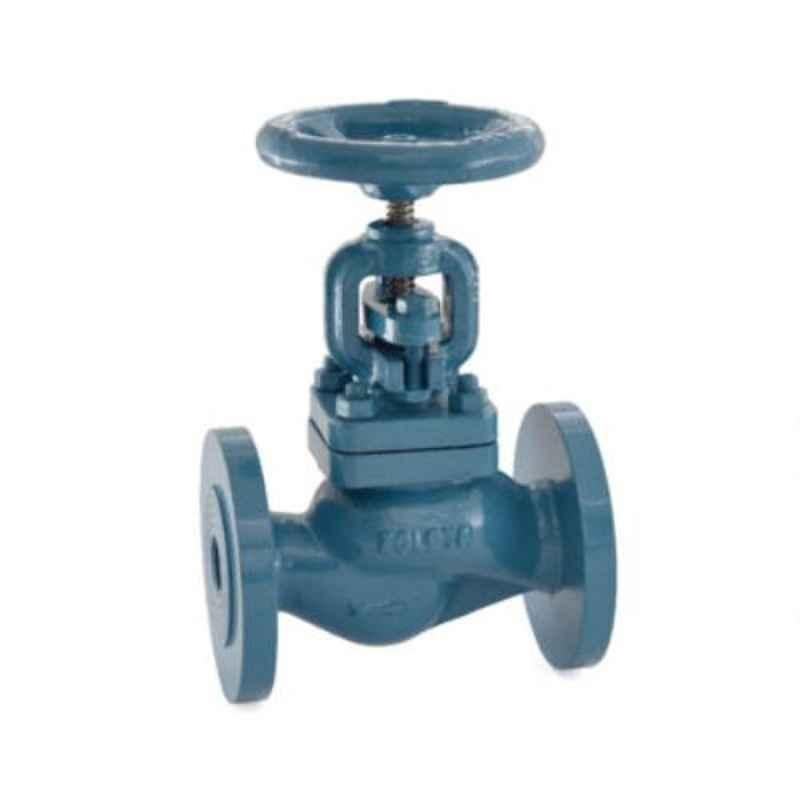

Zoloto 200mm Cast Iron Straight Pattern Flanged Globe Steam Stop Valve, 1065

Name: Zoloto 200mm Cast Iron Straight Pattern Flanged Globe Steam Stop Valve, 1065
Brand: Zoloto
SKU: MSNO5WNWRELW51
Price: 43610 INR
Availability: OutOfStock

₹43,610 (Incl. of all taxes)

₹36,956 ₹6,654 GST

MRP ₹62,518 30% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Flanged Ends to Din 2533 Pn 16Rf.
Straight Pattern, Outside Screw, Yoke Type, Rising Stem.
Provision for Re-Packing Under Pressure & Minimum Pressure Drop Inside the Body Due to Streamlined Body Design.

Product Specifications

Brand	Zoloto
Body Material	Cast Iron
End Connection	Flanged Ends
Item Code	1065
Material	Nut: Carbon Steel Washer: Carbon Steel Handwheel: Cast Iron Stem: Stainless Steel Yoke Bush: Bronze Locking Screw: Carbon Steel Gland Flange: Cast Iron Bonnet: Cast Iron Gland Packing: Braided Graphited Asbestos Studs: Carbon Steel Nuts: Carbon Steel Gasket: Steam Jointing Sheet
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	200 mm
Size (Inch)	8 inch
Suitable For	Water Steam
Test Pressure	Shell:370 psig Seat:185 psig
Type	Flanged
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Valve
Dimensions LxWxH	260x156x47 cm
Weight	129.7 kg

Show All Specifications

Product Details

The Zoloto 200mm Cast Iron Straight Pattern Flanged Globe Steam Stop Valve, 1065 is a reliable and efficient choice for controlling steam and water flow in industrial applications. With a flanged end connection to DIN 2533 PN 16RF, this valve is designed for a working temperature of up to 220 degrees Celsius. Its sturdy cast iron body and 200mm size make it suitable for handling high-pressure systems. The straight pattern design, outside screw, yoke type, and rising stem ensure easy operation and minimal pressure drop. Trust the Zoloto brand for quality and performance in your pipeline systems.
