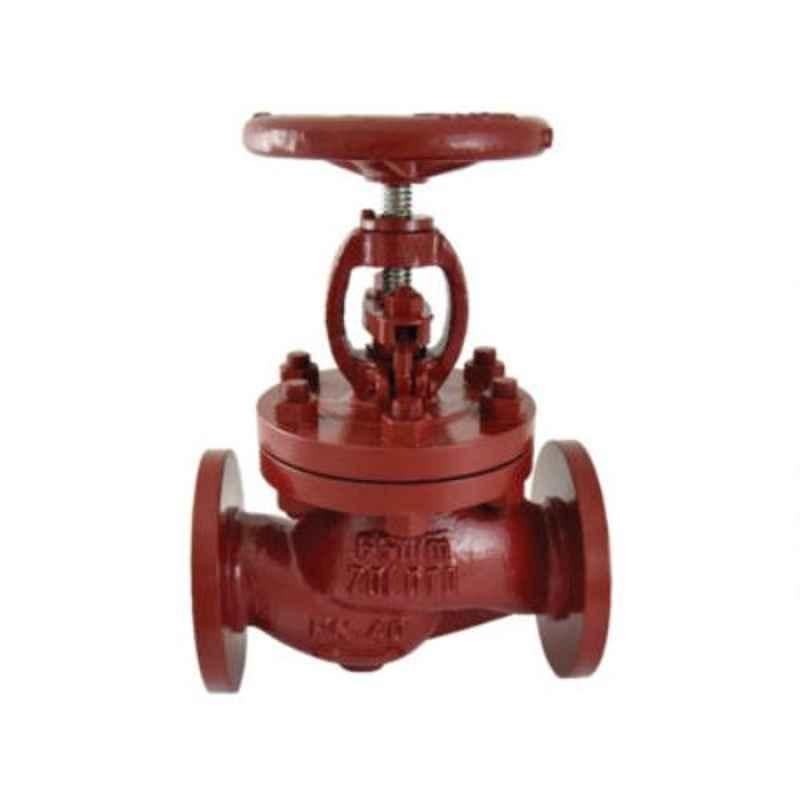

Zoloto 200mm Cast Steel Flanged Globe Steam Stop Valve, 1071

Name: Zoloto 200mm Cast Steel Flanged Globe Steam Stop Valve, 1071
Brand: Zoloto
SKU: MSNEKPQD4XPW52
Price: 115719 INR
Availability: OutOfStock

₹115,719 (Incl. of all taxes)

₹98,066 ₹17,653 GST

MRP ₹165,905 30% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Flanged Ends to Din 2545 Pn�40.
Straight Pattern, Outside Screw, Yoke Type, Rising Stem & Bolted Bonnet.
Minimum Pressure Drop Inside the Body Due to Streamlined Body Design & Handwheel Operated..

Product Specifications

Brand	Zoloto
Body Material	Cast Iron
End Connection	Flanged Ends
Item Code	1071
Material	Nut: Carbon Steel Washer: Carbon Steel Handwheel: Malleable Iron Stem: Stainless Steel Yoke Bush: Aluminium Bronze Locking Screw: Carbon Steel Gland Flange: Cast Steel Gland: Stainless Steel Bonnet: Cast Steel Gland Packing: Braided�Graphite Gasket: Spiral Wound S.S (Type 316) Graphite�Filled Back Seat Bush: Aluminium Bronze
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	200 mm
Size (Inch)	8 inch
Suitable For	Water Oil Steam
Test Pressure	Shell:870 psig Seat:580 psig
Type	Flanged
Working Temperature	425 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Globe Valve
Dimensions LxWxH	689x414x80 cm
Weight	344.2 kg

Show All Specifications

Product Details

The Zoloto 200mm Cast Steel Flanged Globe Steam Stop Valve, 1071 is a reliable and durable valve designed for a variety of industrial applications. This globe valve features flanged ends to Din 2545 Pn40, a straight pattern, outside screw, yoke type, rising stem & bolted bonnet construction, ensuring maximum performance and easy operation. With a minimum pressure drop inside the body due to its streamlined design and handwheel operation, this valve is suitable for use with water, oil, and steam. The 8-inch valve is constructed from high-quality cast iron and can withstand working temperatures of up to 425Â°C. Trust Zoloto for your industrial valve needs.
