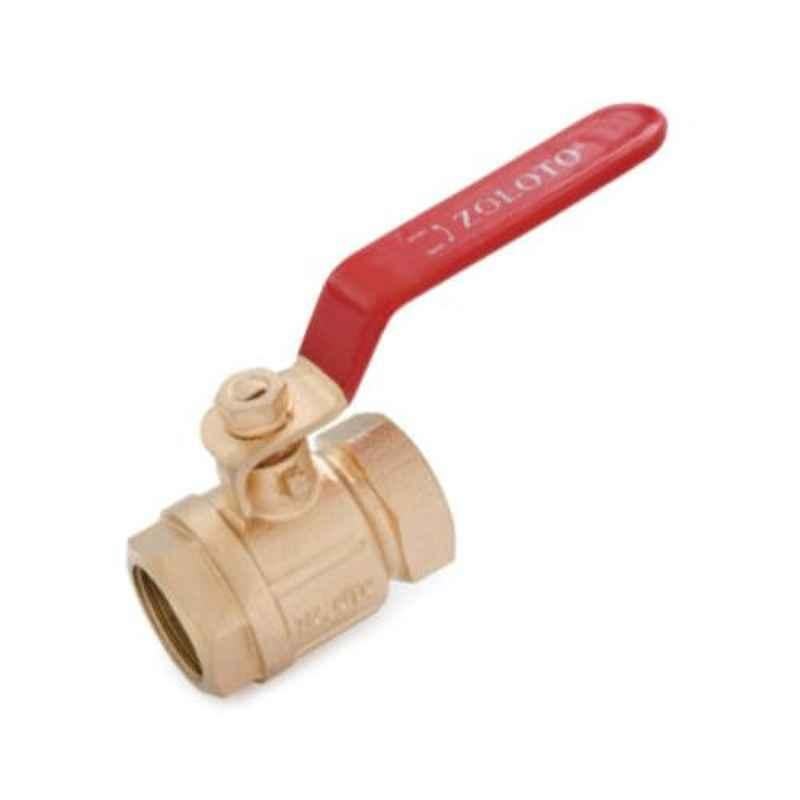

Zoloto 20mm Bronze Screwed Ball Valve, 1008

Name: Zoloto 20mm Bronze Screwed Ball Valve, 1008
Brand: Zoloto
SKU: MSNE5N831JN0KL
Price: 1527 INR
Availability: OutOfStock

₹1,527 (Incl. of all taxes)

₹1,294 ₹233 GST

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Screwed Female Ends to is 554 / Bs 21 / Iso 7.
Full Bore, Two Piece Design.
Quarter Turn, Lever Operated.
Provided with Stainless Steel Ball.
Premium Quality Ptfe Gland Packing & Seating..

Show All Key Features

Product Specifications

Brand	Zoloto
Bore Type	Full
Nominal Size	20 mm
Number of Ways	2
Body Material	Bronze
Design	Two Piece
End Connection	Screwed End
Item Code	1008
Seat Test Pressure	225 psig
Thread Type	BSP Female
Additional Details	Bonnet Material: Forged Brass Body Seat Ring Material: PTFE Thrust Washer Material: PTFE Gland Packing Material: PTFE Stem Material: Stainless Steel Gland Material: Forged Brass Lever Material: Mild Steel Nut Material: Carbon Steel
Ball Material	Stainless Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	3/4 inch
Standards	Stem: ASTM A276 Type 410 Gland: IS 6912 Gr. FLB Bonnet: IS 318 GR. LTB 2 / IS 6912 Gr. FLB Body: IS 318 Gr. LTB 2 Ball: ASTM A276 Type 304 / ASTM A351 Gr. CF8
Suitable For	Water, Oil
Testing Pressure	Shell: 350 psig
Type	Screwed
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Ball Valve
Dimensions LxWxH	6x4x1 cm
Weight	3 kg

Show All Specifications

Product Details

The Zoloto 20mm Bronze Screwed Ball Valve, 1008 is a high-quality and reliable ball valve designed for industrial applications. This two-piece valve features screwed female ends to IS 554/BS 21/ISO 7 standards, ensuring a secure and leak-free connection. The quarter-turn lever operation makes it easy to control the flow of liquids and gases. With a full bore design and premium quality PTFE gland packing and seating, this valve can withstand seat test pressures up to 225 psig. Made from durable bronze material, this valve is built to last and can handle working temperatures of up to 220 degrees Celsius. Trust Zoloto for exceptional performance and longevity in your fluid control systems.
