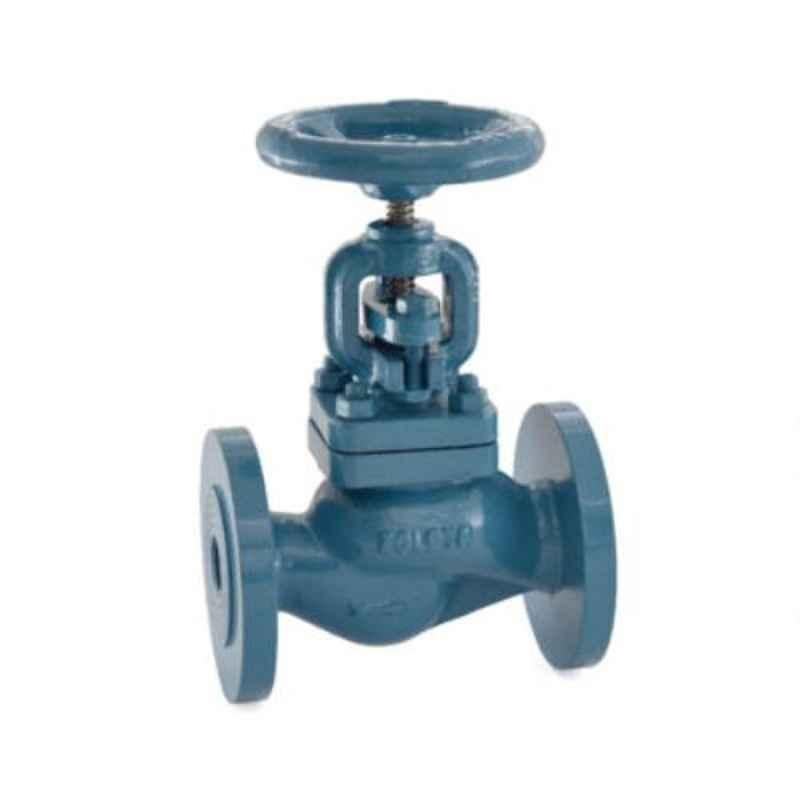

Zoloto 20mm Cast Iron Straight Pattern Flanged Globe Steam Stop Valve, 1065

Name: Zoloto 20mm Cast Iron Straight Pattern Flanged Globe Steam Stop Valve, 1065
Brand: Zoloto
SKU: MSNE5N83168YKL
Price: 3017 INR
Availability: OutOfStock

₹3,017 (Incl. of all taxes)

₹2,556 + ₹461 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Flanged Ends to Din 2533 Pn 16Rf.
Straight Pattern, Outside Screw, Yoke Type, Rising Stem.
Provision for Re-Packing Under Pressure & Minimum Pressure Drop Inside the Body Due to Streamlined Body Design.

Product Specifications

Brand	Zoloto
Body Material	Cast Iron
End Connection	Flanged Ends
Item Code	1065
Material	Nut: Carbon Steel Washer: Carbon Steel Handwheel: Cast Iron Stem: Stainless Steel Yoke Bush: Bronze Locking Screw: Carbon Steel Gland Flange: Cast Iron Bonnet: Cast Iron Gland Packing: Braided Graphited Asbestos Studs: Carbon Steel Nuts: Carbon Steel Gasket: Steam Jointing Sheet
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	20 mm
Size (Inch)	3/4 inch
Suitable For	Water Steam
Test Pressure	Shell:370 psig Seat:185 psig
Type	Flanged
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Stop Valve
Dimensions LxWxH	13x8x3 cm
Weight	6.3 kg

Show All Specifications

Product Details

The Zoloto 20mm Cast Iron Straight Pattern Flanged Globe Steam Stop Valve, 1065 is a reliable and high-quality globe valve designed for use in water and steam applications. Its flanged ends to Din 2533 Pn 16Rf make installation easy, while the straight pattern, rising stem, and yoke type design ensure smooth operation. This valve is built to withstand temperatures up to 220 deg C and features provision for re-packing under pressure, minimizing pressure drop inside the body. Trust Zoloto for durable and efficient valves that meet your industrial needs.
