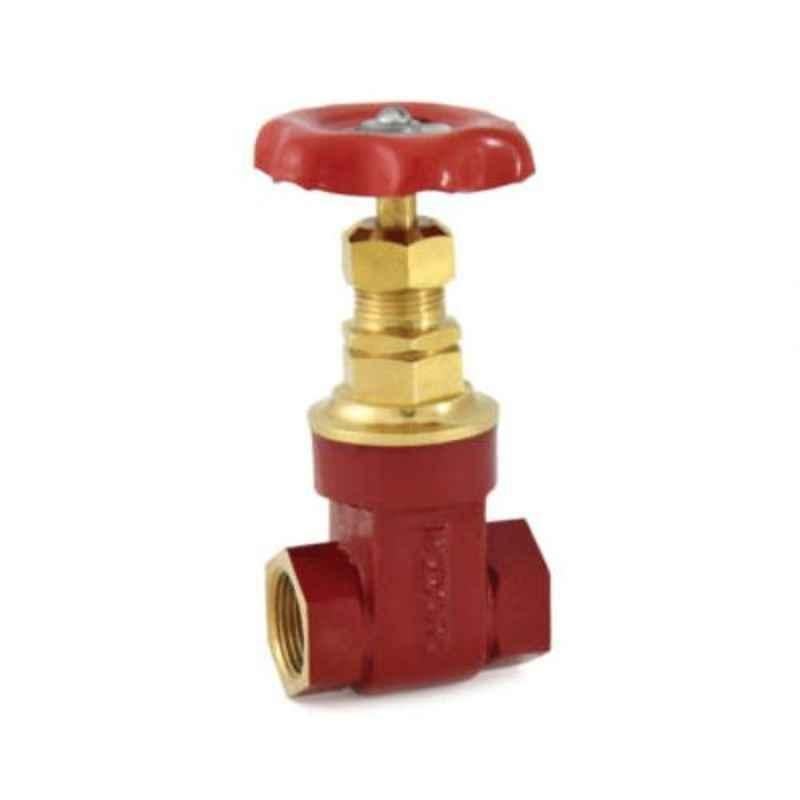

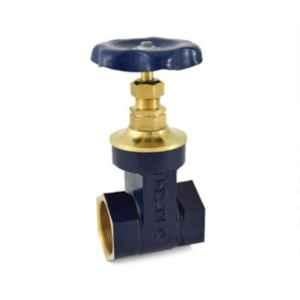

Zoloto 20mm Class-2 Bronze Screwed Gate Valve, 1035 A

Name: Zoloto 20mm Class-2 Bronze Screwed Gate Valve, 1035 A
Brand: Zoloto
SKU: MSNV5OO0VL6V56
Price: 1836 INR
Availability: OutOfStock

₹1,836 (Incl. of all taxes)

₹1,555 ₹281 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Screwed Female Ends to is 554 / Bs 21 / Iso 7.
Screwed in Bonnet, Inside Screw, Non-Rising Stem, Integral Seat, Solid Wedge.
Designed Sheet Metal Handwheel for A Firm Grip & Convenient Operation.
Premium Quality Ptfe Gland Packing & Design Standard is 778 & Class-1..

Show All Key Features

Product Specifications

Brand	Zoloto
Size	20 mm
Body Material	Bronze
End Connection	Screwed End
Item Code	1035 A
Suitable For	Water Oil
Additional Details	Screw / Bolt: Carbon Steel (Zinc Plated) Washer: Carbon Steel (Zinc Plated) Handwheel: Sheet Metal (Powder Coated) / Cast Iron Stem: Forged Brass Gland Nut: Forged Brass Gland: Forged Brass Gland Packing: PTFE Stuffing Box: Forged Brass Bonnet: Forged Brass Wedge: Bronze Name Plate: Aluminium End Type: Female Screwed
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	3/4 inch
Test Pressure	Shell:2.4 MPa Seat:1.6 MPa
Type	Screwed
Working Temperature	45 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Gate Valve
Dimensions LxWxH	8x5x2 cm
Weight	3.6 kg

Show All Specifications

Product Details

Enhance your plumbing system with the Zoloto 20mm Class-2 Bronze Screwed Gate Valve, 1035 A. This premium gate valve from Zoloto features a size of 20mm and a screwed end connection for easy installation. The body material is made of durable bronze, suitable for water and oil applications with an operating temperature of 45 deg C. The valve includes carbon steel screws and washers, a sheet metal or cast iron handwheel, and a forged brass stem, gland nut, and packing. The integral seat, solid wedge, and premium PTFE gland packing ensure reliable performance. Upgrade your system with this high-quality Zoloto gate valve today.
