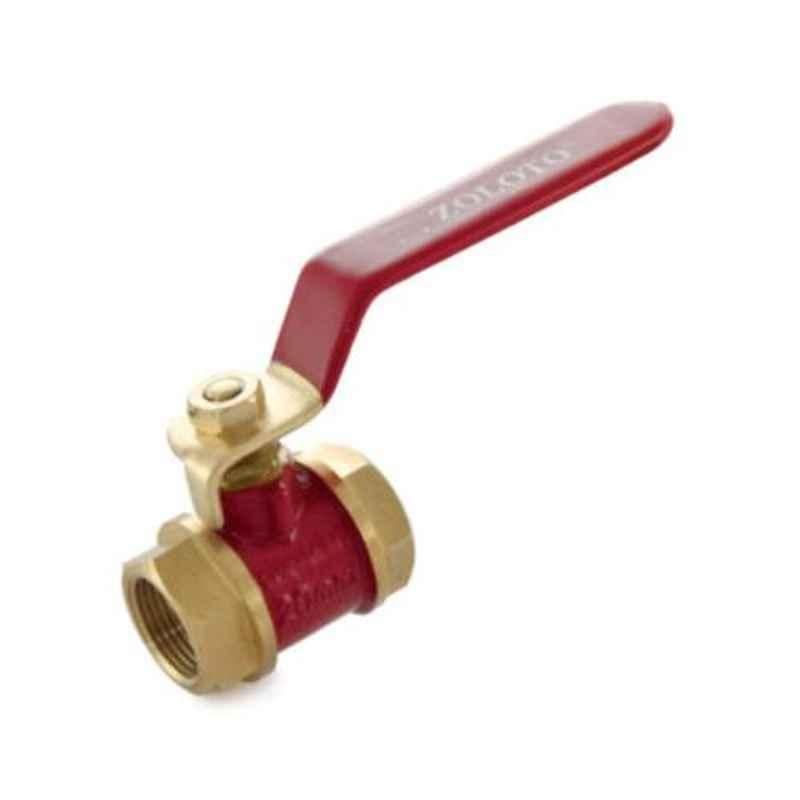

Zoloto 20mm E-Model Bronze Screwed Ball Valve, 1008 A

Name: Zoloto 20mm E-Model Bronze Screwed Ball Valve, 1008 A
Brand: Zoloto
SKU: MSN75DQZ0Z1V92
Price: 1275 INR
Availability: OutOfStock

₹1,275 (Incl. of all taxes)

₹1,081 ₹194 GST

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Screwed Female Ends to IS 554/BS21/ISO 7.
Full Bore, Two Piece Design.
Quarter Turn, Lever Operated.
Provided With Stainless Steel Ball.
Premium Quality PTFE Gland Packing & Seating..

Show All Key Features

Product Specifications

Brand	Zoloto
Bore Type	Full
Nominal Size	20 mm
Number of Ways	2
Body Material	Bronze
Body Test Pressure	285 psig
End Connection	Screwed End
Item Code	1008 A
Seat Test Pressure	192 psig
Thread Type	BSP Female
Additional Details	Bonnet Material: Bronze Ball Material: Stainless Steel Body Seat Ring Material: PTFE Thrust Washer Material: PTFE Gland Packing Material: PTFE Stem Material: Stainless Steel Gland Material: Forged Brass Lever Material: Mild Steel Nut Material: Carbon Steel
Ball Material	Stainless Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	3/4 inch
Suitable For	Water, Oil
Type	Screwed
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Ball Valve
Dimensions LxWxH	5x3x1 cm
Weight	2.5 kg

Show All Specifications

Product Details

Enhance your plumbing system with the Zoloto 20mm E-Model Bronze Screwed Ball Valve, 1008 A. This top-of-the-line ball valve features a nominal size of 20 mm and a seat test pressure of 192 psig, ensuring durability and reliability. The screw female ends are designed to IS 554/BS21/ISO 7 standards, while the premium quality PTFE gland packing and seating provide a leak-free operation. With a two-piece design, quarter-turn lever operation, and a stainless steel ball, this ball valve offers smooth performance and long-lasting use. Upgrade your plumbing system with Zoloto's trusted craftsmanship and superior quality.
