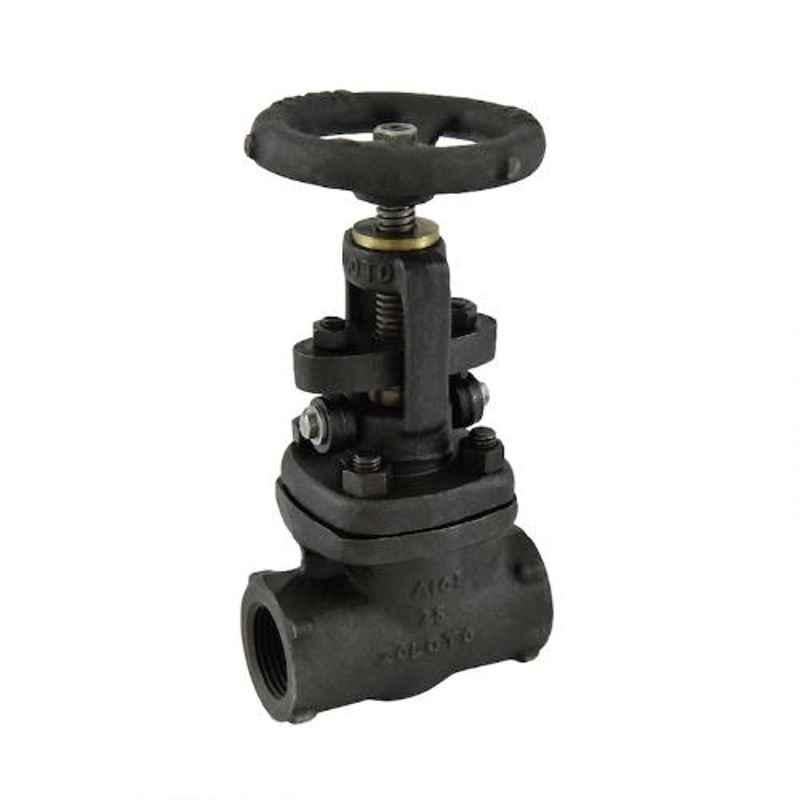

Zoloto 20mm Forged Steel Class-800 Full Bore Gate Valve, 1075A

Name: Zoloto 20mm Forged Steel Class-800 Full Bore Gate Valve, 1075A
Brand: Zoloto
SKU: MSNR50N42DN251
Price: 4034 INR
Availability: OutOfStock

₹4,034 (Incl. of all taxes)

₹3,420 ₹614 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Design Standard Api 602 & Bsen Iso 15761.
Body & Bonnet Are Phosphated, to Ensure Maximum Resistance from Rust.
Bolted Bonnet, Outside Screw, Yoke Type, Rising Stem.
Screwed Female Ends to Bspt / Npt / Socket Welded to Ansi B16.11.

Show All Key Features

Product Specifications

Brand	Zoloto
Size	20 mm
Body Material	Forged Carbon Steel
End Connection	Screwed End
Item Code	1075A
Suitable For	Water Oil Steam
Additional Details	Body Seat Ring: Stainless Steel Wedge (Solid): Stainless Steel Stem: Stainless Steel Gasket: Spiral Wound S.S. (Type 316) Graphite Filled Bonnet: Forged Carbon Steel Bonnet Nut: Alloy Steel Stud: Alloy Steel Gland Packing: Non Asbestos Graphite with Corrosion Inhibitor Gland: Stainless Steel Gland Flange: Carbon Steel Eye Bolt: Stainless Steel End Type: Female Screwed
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	3/4 inch
Test Pressure	Shell:3000 psig Seat:2200 psig
Type	Screwed
Working Temperature	425 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Gate Valve
Dimensions LxWxH	18x11x3 cm
Weight	8.6 kg

Show All Specifications

Product Details

The Zoloto 20mm Forged Steel Class-800 Full Bore Gate Valve 1075A is a top-of-the-line product from Zoloto, a trusted brand in the industry. This gate valve is perfect for applications with water, oil, or steam due to its durable materials and design. Made with forged carbon steel, stainless steel components, and a graphite-filled gasket, this valve is built to last. It meets design standards API 602 and BSEN ISO 15761, and features a bolted bonnet, rising stem, and screwed female ends for easy installation. Trust the Zoloto 20mm Gate Valve for reliable performance in your industrial applications.
