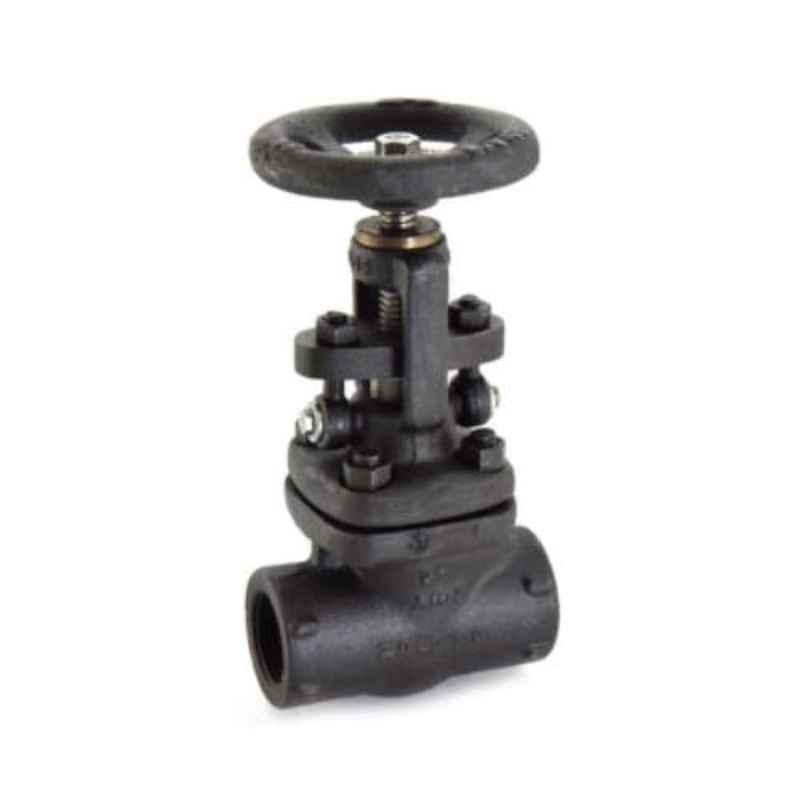

Zoloto 20mm Forged Steel Class-800 Full Bore Globe Valve, 1074A

Name: Zoloto 20mm Forged Steel Class-800 Full Bore Globe Valve, 1074A
Brand: Zoloto
SKU: MSNR50N424G251
Price: 4119 INR
Availability: OutOfStock

₹4,119 (Incl. of all taxes)

₹3,492 ₹627 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Design Standard Api 602 & Bsen Iso 15761.
Body & Bonnet Are Phosphated, to Ensure Maximum Resistance from Rust.
Bolted Bonnet, Outside Screw, Yoke Type, Rising Stem.
Screwed Female Ends to Bspt / Npt / Socket Welded to Ansi B16.11.

Show All Key Features

Product Specifications

Brand	Zoloto
Body Material	Forged Carbon Steel
End Connection	Female Ends
Item Code	1074A
Material	Body: Forged Carbon Steel Body Seat Ring: Stainless Steel Disc: Stainless Steel Stem: Stainless Steel Check Nut: Stainless Steel Gasket: Spiral Wound S.S (Type 316) Graphite Filled Bonnet: Forged Carbon Steel Bonnet Nut: Alloy Steel Stud: Alloy Steel Gland Packing: Non Asbestos Graphite with Corrosion Inhibitor Gland: Stainless Steel Gland Flange: Carbon Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	20 mm
Size (Inch)	3/4 inch
Suitable For	Water Oil Steam Air Gas
Test Pressure	Shell:3000 psig Seat:2200 psig
Type	Screwed
Working Temperature	425 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Globe Valve
Dimensions LxWxH	18x11x3 cm
Weight	8.7 kg

Show All Specifications

Product Details

The Zoloto 20mm Forged Steel Class-800 Full Bore Globe Valve, 1074A is a high-quality screwed valve designed to meet the standards of API 602 & BSEN ISO 15761. Constructed from forged carbon steel, this valve ensures durability and maximum resistance to rust, making it suitable for water, oil, steam, air, and gas applications. The valve features a bolted bonnet, outside screw, yoke type, rising stem, and screwed female ends to BSPT/NPT/socket welded to ANSI B16.11. With a working temperature of 425 deg C, this valve is a reliable choice for industrial applications.
