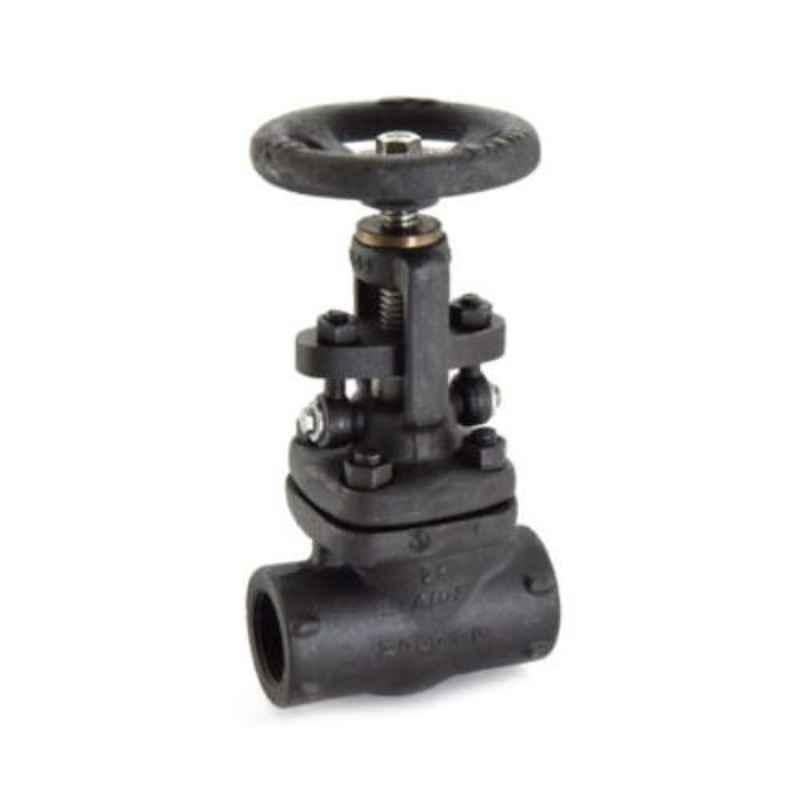

Zoloto 20mm Forged Steel Class-800 Standard Bore Globe Valve, 1074

Name: Zoloto 20mm Forged Steel Class-800 Standard Bore Globe Valve, 1074
Brand: Zoloto
SKU: MSNG9VN7076DKP
Price: 2713 INR
Availability: OutOfStock

₹2,713 (Incl. of all taxes)

₹2,299 + ₹414 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Design Standard Api 602 & Bsen Iso 15761.
Body & Bonnet Are Phosphated, to Ensure Maximum Resistance from Rust.
Bolted Bonnet, Outside Screw, Yoke Type, Rising Stem.
Screwed Female Ends to Bspt / Npt / Socket Welded to Ansi B16.11.

Show All Key Features

Product Specifications

Brand	Zoloto
Body Material	Forged Carbon Steel
End Connection	Female Ends
Item Code	1074
Material	Body: Forged Carbon Steel Body Seat Ring: Stainless Steel Disc: Stainless Steel Stem: Stainless Steel Check Nut: Stainless Steel Gasket: Spiral Wound S.S (Type 316) Graphite Filled Bonnet: Forged Carbon Steel Bonnet Nut: Alloy Steel Stud: Alloy Steel Gland Packing: Non Asbestos Graphite with Corrosion Inhibitor Gland: Stainless Steel Gland Flange: Carbon Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	20 mm
Size (Inch)	3/4 inch
Suitable For	Water Oil Steam Air Gas
Test Pressure	Shell:3000 psig Seat:2200 psig
Type	Screwed
Working Temperature	425 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Globe Valve
Dimensions LxWxH	12x7x3 cm
Weight	5.8 kg

Show All Specifications

Product Details

The Zoloto 20mm Forged Steel Class-800 Standard Bore Globe Valve, 1074 is a high-quality screwed type valve suitable for various applications such as water, oil, steam, air, and gas. This valve is designed with industry-standard specifications including Api 602 & Bsen Iso 15761, with a body and bonnet that are phosphated for maximum rust resistance. Featuring a bolted bonnet, outside screw, yoke type, rising stem, and screwed female ends to BSPT/NPT/socket welded to ANSI B16.11, this valve is reliable and efficient for your industrial needs. Trust Zoloto for durable and reliable valves.
