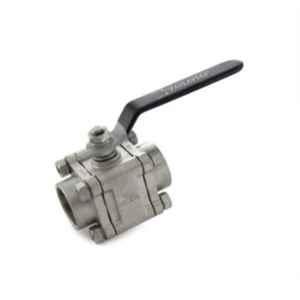

Zoloto 20mm Stainless Steel Class-150 Screwed Three Piece Design Ball Valve, 1081

Name: Zoloto 20mm Stainless Steel Class-150 Screwed Three Piece Design Ball Valve, 1081
Brand: Zoloto
SKU: MSN19Z238Z7853
Price: 2295 INR
Availability: OutOfStock

₹2,295 (Incl. of all taxes)

₹1,945 ₹350 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Design Standard Bs En Iso 17292 (Bs 5351).
Screwed Female Ends to Bspt / Npt / Socket Weld.
Reduced Bore, Three Piece Design & Superb in Quality & Performance.

Product Specifications

Brand	Zoloto
Bore Type	Reduce
Nominal Size	20 mm
Number of Ways	3
Body Material	Stainless Steel
Body Test Pressure	440 psig
End Connection	Screwed End
Item Code	1081
Seat Test Pressure	300 psig
Thread Type	BSP Female
Additional Details	Ball: Stainless Steel Thrust Washer: PTFE 35% Carbon Filled Stem: Stainless Steel Packing Ring: PTFE 35% Carbon Filled Gland: Stainless Steel Cup Washer: Stainless Steel Nut: H.T Steel Spring Washer: Spring Steel / Stainless Steel Lever: Carbon Steel Body Seat Ring: PTFE Gasket: PTFE
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	3/4 inch
Suitable For	Water, Oil, Steam, Air & Gas
Type	Screwed
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Valve
Dimensions LxWxH	10x6x2 cm
Weight	4.9 kg

Show All Specifications

Product Details

The Zoloto 20mm Stainless Steel Class-150 Screwed Three Piece Design Ball Valve, 1081 is a top-of-the-line product in the Ball Valves category. With a nominal size of 20mm and a seat test pressure of 300 psig, this ball valve is designed to withstand temperatures up to 220 degrees Celsius. The stainless steel construction ensures durability and longevity, making it suitable for various applications including water, oil, steam, air, and gas. The design standard BS EN ISO 17292 (BS 5351) and the three-piece design ensure superb quality and performance. The screwed female ends to BSPT/NPT/socket weld provide ease of installation and maintenance. Don't miss out on this high-quality and reliable ball valve from Zoloto.
