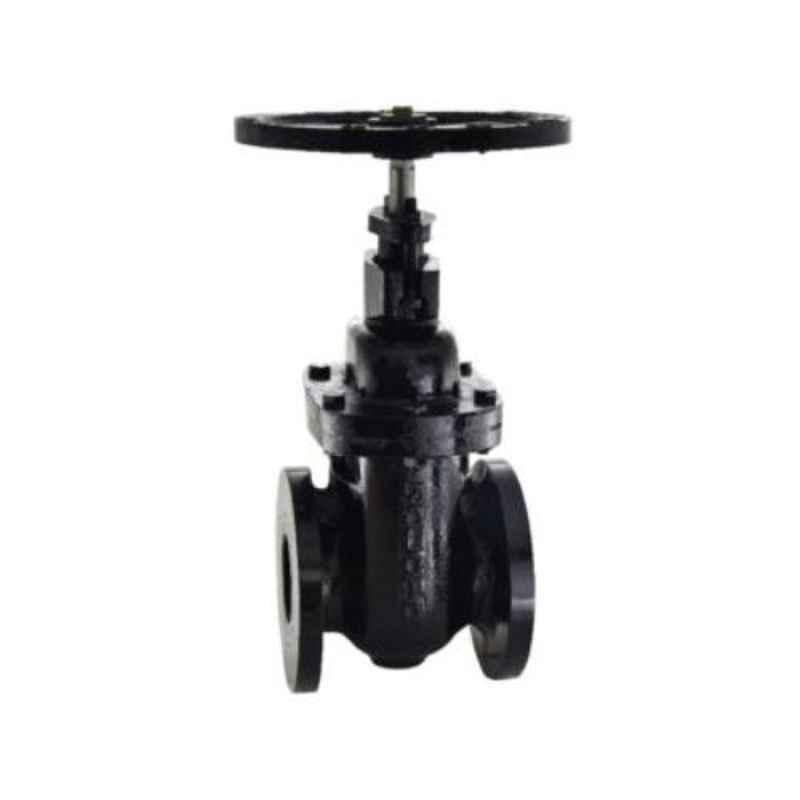

Zoloto 250mm Cast Iron PN 1.6 Flanged Sluice Valve, 1079B

Name: Zoloto 250mm Cast Iron PN 1.6 Flanged Sluice Valve, 1079B
Brand: Zoloto
SKU: MSNR50N42D8451
Price: 50399 INR
Availability: OutOfStock

₹50,399 (Incl. of all taxes)

₹42,710 + ₹7,689 GST

MRP ₹72,247 30% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Design Standard is 14846 Pn 1.0.
Bolted Bonnet, Inside Screw, Non-Rising Stem.
Rigid & Sturdy Design, Handwheel Operated & Flange Ends As Per is 1538..

Product Specifications

Brand	Zoloto
Size	250 mm
Body Material	Cast Iron
Item Code	1079B
Suitable For	Water
Material	Body: Cast Iron Seat Ring: Bronze Wedge: Cast Iron Stem Bush: Bronze Gasket: Rubber Bonnet: Cast Iron Stem: Stainless Steel Gasket: Rubber Stuffing Box: Cast Iron Gland Packing: Hemp &�Jute Gland Flange: Cast Iron Handwheel: Cast Iron
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	10 inch
Test Pressure	Shell:2.4 MPa Seat:1.6 MPa
Type	Flanged
Working Temperature	45 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Flanged Sluice Valve
Dimensions LxWxH	300x180x51 cm
Weight	149.9 kg

Show All Specifications

Product Details

The Zoloto 250mm Cast Iron PN 1.6 Flanged Sluice Valve, 1079B is a high-quality gate valve designed for optimal performance in water applications. Made of durable materials including cast iron, bronze, and stainless steel, this valve can withstand temperatures up to 45 deg C. With a design standard of 14846 Pn 1.0, bolted bonnet, and non-rising stem, this valve offers a rigid and sturdy construction. The handwheel operation and flange ends make it easy to install and operate. Tested at 2.4 MPa shell pressure and 1.6 MPa seat pressure, this valve is reliable and efficient. Perfect for water systems, this valve offers superior quality and performance.
