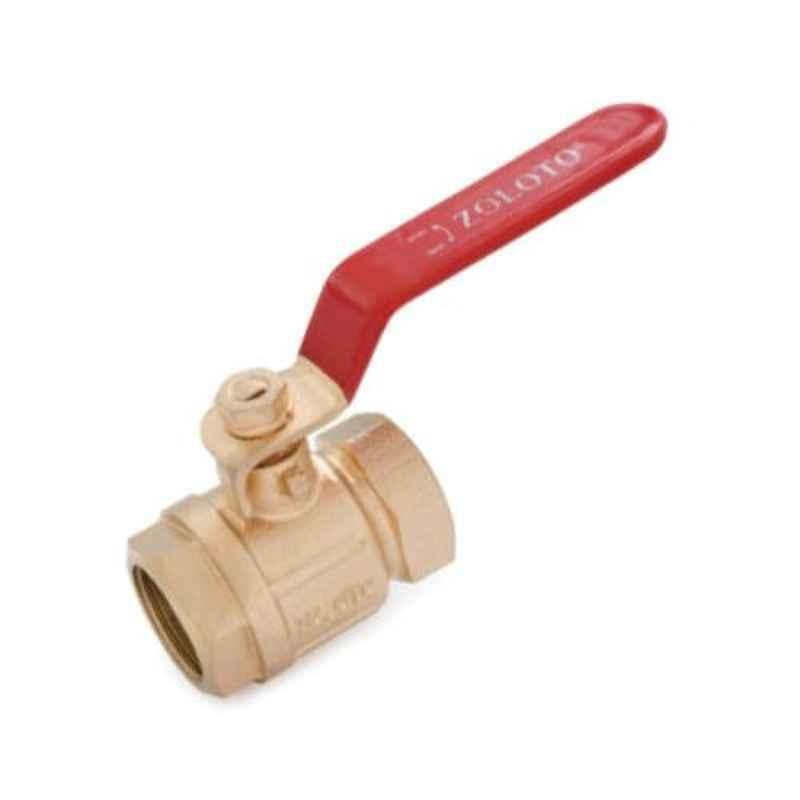

Zoloto 25mm Bronze Screwed Ball Valve, 1008

Name: Zoloto 25mm Bronze Screwed Ball Valve, 1008
Brand: Zoloto
SKU: MSNVK138JDDJ91
Price: 1905 INR
Availability: OutOfStock

₹1,905 (Incl. of all taxes)

₹1,614 ₹291 GST

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Screwed Female Ends to is 554 / Bs 21 / Iso 7.
Full Bore, Two Piece Design.
Quarter Turn, Lever Operated.
Provided with Stainless Steel Ball.
Premium Quality Ptfe Gland Packing & Seating..

Show All Key Features

Product Specifications

Brand	Zoloto
Bore Type	Full
Nominal Size	25 mm
Number of Ways	2
Body Material	Bronze
Design	Two Piece
End Connection	Screwed End
Item Code	1008
Seat Test Pressure	225 psig
Thread Type	BSP Female
Additional Details	Bonnet Material: Forged Brass Body Seat Ring Material: PTFE Thrust Washer Material: PTFE Gland Packing Material: PTFE Stem Material: Stainless Steel Gland Material: Forged Brass Lever Material: Mild Steel Nut Material: Carbon Steel
Ball Material	Stainless Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	1 inch
Standards	Stem: ASTM A276 Type 410 Gland: IS 6912 Gr. FLB Bonnet: IS 318 GR. LTB 2 / IS 6912 Gr. FLB Body: IS 318 Gr. LTB 2 Ball: ASTM A276 Type 304 / ASTM A351 Gr. CF8
Suitable For	Water, Oil
Testing Pressure	Shell: 350 psig
Type	Screwed
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Ball Valve
Dimensions LxWxH	8x5x2 cm
Weight	3.7 kg

Show All Specifications

Product Details

Experience superior quality and durability with the Zoloto 25mm Bronze Screwed Ball Valve, 1008. This 1-inch valve is designed with screwed female ends to IS 554/BS 21/ISO 7 standards, ensuring a secure fit. The two-piece design and stainless steel ball provide reliability and ease of operation. With a working temperature of up to 220 deg C and a seat test pressure of 225 psig, this valve is built to withstand demanding applications. Trust in the premium quality PTFE gland packing and seating for leak-free performance. Upgrade your plumbing system with Zoloto's trusted brand.
