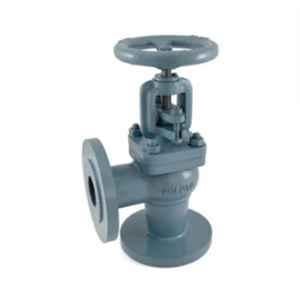

Zoloto 25mm Cast Iron Angle Pattern Flanged Globe Steam Stop Valve, 1066

Name: Zoloto 25mm Cast Iron Angle Pattern Flanged Globe Steam Stop Valve, 1066
Brand: Zoloto
SKU: MSNM9XYGQGYDKJ
Price: 3415 INR
Availability: OutOfStock

₹3,415 (Incl. of all taxes)

₹2,896 + ₹519 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Flanged Ends to Din 2533 Pn 16Rf.
Angle Pattern, Outside Screw, Yoke Type & Rising Stem.
Renewable 13% Cr. Stainless Steel Working Parts.
Provision for Re-Packing Under Pressure & Minimum Pressure Drop Inside the Body Due to Streamlined Body Design.

Show All Key Features

Product Specifications

Brand	Zoloto
Body Material	Cast Iron
End Connection	Flanged Ends
Item Code	1066
Material	Nut: Carbon Steel Washer: Carbon Steel Handwheel: Cast Iron Stem: Stainless Steel Yoke Bush: Bronze Locking Screw: Carbon Steel Gland Flange: Cast Iron Bonnet: Cast Iron Gland Packing: Braided Graphited Asbestos Studs: Carbon Steel Nuts: Carbon Steel Gasket: Steam Jointing Sheet
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	25 mm
Size (Inch)	1 inch
Suitable For	Water Steam
Test Pressure	Shell:370 psig Seat:185 psig
Type	Flanged
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Valve
Dimensions LxWxH	15x9x4 cm
Weight	7.1 kg

Show All Specifications

Product Details

The Zoloto 25mm Cast Iron Angle Pattern Flanged Globe Steam Stop Valve, 1066 is a reliable and efficient valve for controlling the flow of water and steam. With a 1-inch flanged size and a working temperature of up to 220 degrees Celsius, this valve is suitable for various applications. The valve is designed with flanged ends to Din 2533 Pn 16Rf, angle pattern, outside screw, yoke type & rising stem, and renewable 13% Cr. stainless steel working parts. It also features provision for re-packing under pressure and minimum pressure drop inside the body due to its streamlined design. Trust Zoloto for quality valves that deliver performance and durability.
