Zoloto 25mm Cast Steel Flanged Globe Steam Stop Valve, 1071

Name: Zoloto 25mm Cast Steel Flanged Globe Steam Stop Valve, 1071
Brand: Zoloto
SKU: MSN2KM1E3JG89V
Price: 6430 INR
Availability: OutOfStock

₹6,430 (Incl. of all taxes)

₹5,450 ₹980 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Flanged Ends to Din 2545 Pn�40.
Straight Pattern, Outside Screw, Yoke Type, Rising Stem & Bolted Bonnet.
Minimum Pressure Drop Inside the Body Due to Streamlined Body Design & Handwheel Operated..

Product Specifications

Brand	Zoloto
Body Material	Cast Iron
End Connection	Flanged Ends
Item Code	1071
Material	Nut: Carbon Steel Washer: Carbon Steel Handwheel: Malleable Iron Stem: Stainless Steel Yoke Bush: Aluminium Bronze Locking Screw: Carbon Steel Gland Flange: Cast Steel Gland: Stainless Steel Bonnet: Cast Steel Gland Packing: Braided�Graphite Gasket: Spiral Wound S.S (Type 316) Graphite�Filled Back Seat Bush: Aluminium Bronze
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	25 mm
Size (Inch)	1 inch
Suitable For	Water Oil Steam
Test Pressure	Shell:870 psig Seat:580 psig
Type	Flanged
Working Temperature	425 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Valve
Dimensions LxWxH	27x16x6 cm
Weight	13.3 kg

Show All Specifications

Product Details

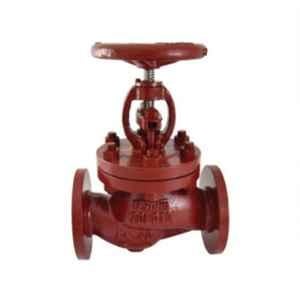

The Zoloto 25mm Cast Steel Flanged Globe Steam Stop Valve, 1071 is a top-of-the-line valve designed for high-temperature applications. Featuring a 1-inch size, flanged ends to Din 2545 Pn40, and a cast iron body, this valve is suitable for handling water, oil, and steam with ease. The straight pattern, outside screw, yoke type, rising stem & bolted bonnet design ensures durability and reliability. With a streamlined body design, this valve minimizes pressure drop for efficient operation. The handwheel operation allows for easy control and adjustments. Trust Zoloto for quality and performance in your industrial applications.
