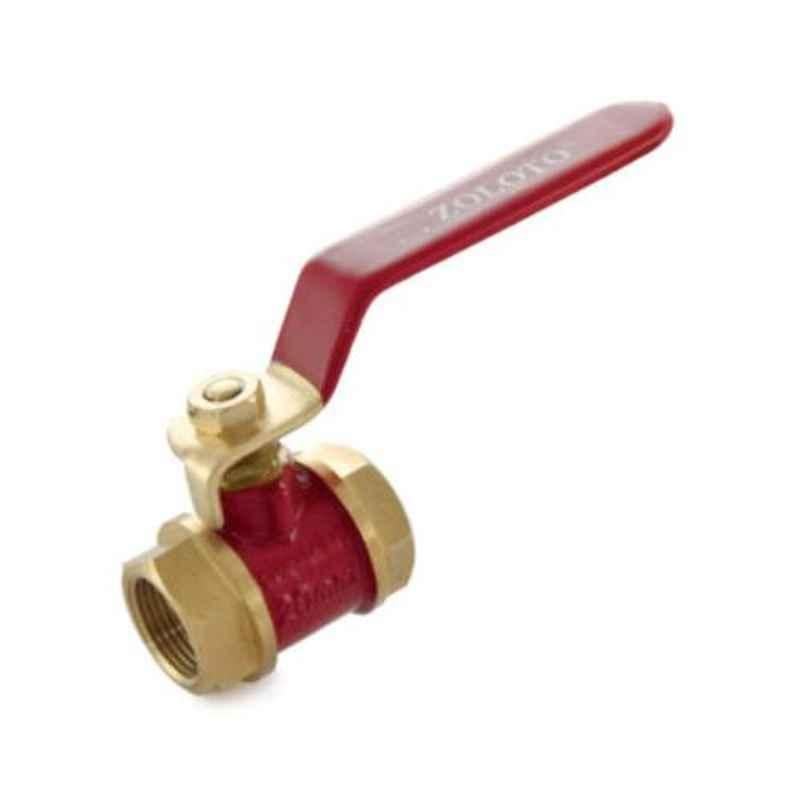

Zoloto 25mm E-Model Bronze Screwed Ball Valve, 1008 A

Name: Zoloto 25mm E-Model Bronze Screwed Ball Valve, 1008 A
Brand: Zoloto
SKU: MSNV5OO0V0M056
Price: 1829 INR
Availability: OutOfStock

₹1,829 (Incl. of all taxes)

₹1,550 ₹279 GST

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Screwed Female Ends to IS 554/BS21/ISO 7.
Full Bore, Two Piece Design.
Quarter Turn, Lever Operated.
Provided With Stainless Steel Ball.
Premium Quality PTFE Gland Packing & Seating..

Show All Key Features

Product Specifications

Brand	Zoloto
Bore Type	Full
Nominal Size	25 mm
Number of Ways	2
Body Material	Bronze
Body Test Pressure	285 psig
End Connection	Screwed End
Item Code	1008 A
Seat Test Pressure	192 psig
Thread Type	BSP Female
Additional Details	Bonnet Material: Bronze Ball Material: Stainless Steel Body Seat Ring Material: PTFE Thrust Washer Material: PTFE Gland Packing Material: PTFE Stem Material: Stainless Steel Gland Material: Forged Brass Lever Material: Mild Steel Nut Material: Carbon Steel
Ball Material	Stainless Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	1 inch
Suitable For	Water, Oil
Type	Screwed
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Ball Valve
Dimensions LxWxH	7x5x2 cm
Weight	3.5 kg

Show All Specifications

Product Details

The Zoloto 25mm E-Model Bronze Screwed Ball Valve, 1008 A is a high-quality product from Zoloto, a trusted brand in the industry. This ball valve is designed with premium features such as screwed female ends to IS 554/BS21/ISO 7 standards, full bore for optimal flow, and a two-piece design for easy maintenance. The lever operation allows for quick and easy quarter-turn action. With a stainless steel ball and top-notch PTFE gland packing and seating, this ball valve ensures reliable performance. Ideal for applications with a working temperature of up to 220 deg C, this valve is a durable and efficient choice for your plumbing needs.
