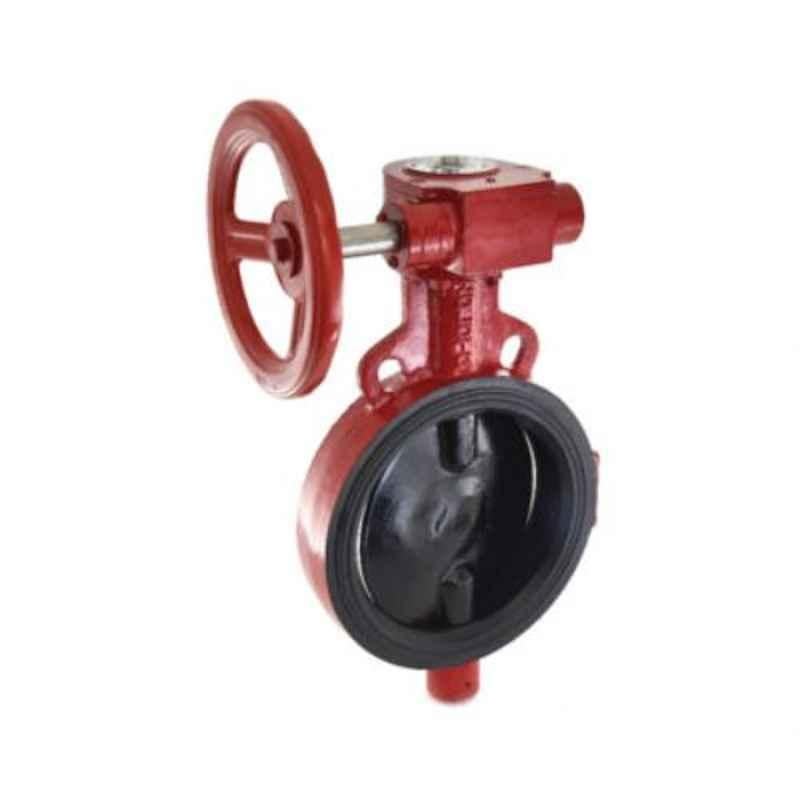

Zoloto 300mm Gear Operated Wafer Type PN 2.5 Butterfly Valve with S.G. Iron Disc, 1078H

Name: Zoloto 300mm Gear Operated Wafer Type PN 2.5 Butterfly Valve with S.G. Iron Disc, 1078H
Brand: Zoloto
SKU: MSNO5WNWRDXW51
Price: 26940 INR
Availability: OutOfStock

₹26,940 (Incl. of all taxes)

₹22,829 ₹4,111 GST

MRP ₹38,609 30% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Design Standard is 13095 / Bs En 593 (Bs 5155).
S.G Iron Construction & S.G Iron Disc Which is Accurately Guided Between the Two Stems..

Product Specifications

Brand	Zoloto
End Connection	Wafer Type
Size	300 mm
Body Material	S.G. Iron
Item Code	1078H
Pressure Rating	PN2.5
Suitable For	Water
Additional Details	Gasket: Steam Jointing Sheet Packing Bush: PTFE/Bronze Upper Stem: Stainless Steel Body: S.G Iron Disc: S. G Iron Taper Pin (Optional): Stainless Steel Bush: PTFE / Bronze Lower Stem: Stainless Steel �O� Ring: Nitrile Rubber Dowel Pin: Spring�Steel C � Sunk Screw & Nuts: Carbon Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	12 inch
Test Pressure	Shell:3.75 MPa Seat:2.75 MPa
Type	Wafer
Working Temperature	90 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Valve
Dimensions LxWxH	161x97x34 cm
Weight	80.1 kg

Show All Specifications

Product Details

The Zoloto 300mm Gear Operated Wafer Type PN 2.5 Butterfly Valve with S.G. Iron Disc, 1078H is a top-of-the-line product in the category of Butterfly Valves. This valve features a wafer type end connection and is constructed from high-quality S.G. Iron material. With a size of 300mm (12 inches) and a pressure rating of PN2.5, this valve is suitable for water applications. Its design standard complies with 13095 / BS EN 593 (BS 5155) and features a precise S.G Iron disc that is accurately guided between two stems, ensuring reliable performance. Trust Zoloto for exceptional quality and durability in butterfly valves.
