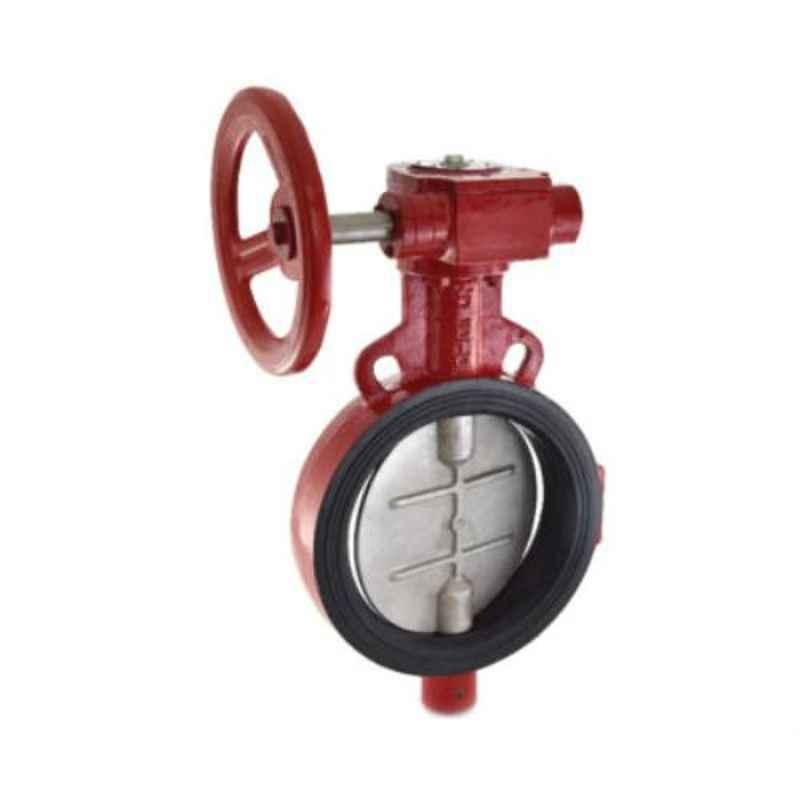

Zoloto 300mm Gear Operated Wafer Type PN 2.5 Butterfly Valve with SS 304 Disc, 1078J

Name: Zoloto 300mm Gear Operated Wafer Type PN 2.5 Butterfly Valve with SS 304 Disc, 1078J
Brand: Zoloto
SKU: MSNR50N424R451
Price: 31460 INR
Availability: OutOfStock

₹31,460 (Incl. of all taxes)

₹26,660 ₹4,800 GST

MRP ₹45,101 30% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Design Standard is 13095 / Bs En 593 (Bs 5155).
Wafer Type & S.G Iron Construction.

Product Specifications

Brand	Zoloto
End Connection	Wafer Type
Size	300 mm
Body Material	S.G. Iron
Item Code	1078J
Pressure Rating	PN2.5
Suitable For	Water
Additional Details	Gasket: Steam Jointing Sheet Packing Bush: PTFE / Bronze Upper Stem: Stainless Steel Disc: Stainless Steel Name Plate: Aluminium Bush: PTFE / Bronze Lower Stem: Stainless Steel �O� Ring: Nitrile Rubber Dowel Pin: Spring�Steel C � Sunk Screw & Nuts: Carbon Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	12 inch
Test Pressure	Shell:3.75 MPa Seat:2.75 MPa
Type	Wafer
Working Temperature	90 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Butterfly Valve
Dimensions LxWxH	188x113x40 cm
Weight	93.6 kg

Show All Specifications

Product Details

The Zoloto 300mm Gear Operated Wafer Type PN 2.5 Butterfly Valve with SS 304 Disc, 1078J is a top-of-the-line valve designed for efficiency and durability. Made of SG Iron with a stainless steel disc, this valve is built to last. It features a steam jointing sheet gasket, PTFE/bronze packing bush, and stainless steel stems for smooth operation. With a design standard of 13095/BS EN 593 (BS 5155) and a pressure rating of PN2.5, this valve is suitable for water applications up to 90 deg C. Trust Zoloto for quality valves that deliver superior performance.
