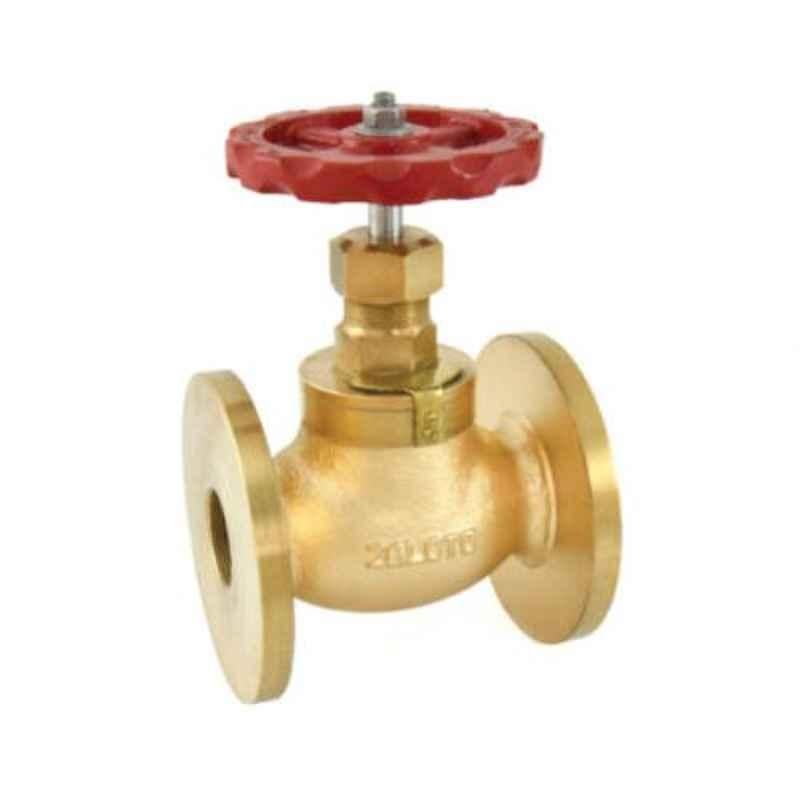

Zoloto 32mm Bronze Flanged Globe Steam Stop Valve, 1042

Name: Zoloto 32mm Bronze Flanged Globe Steam Stop Valve, 1042
Brand: Zoloto
SKU: MSN19Z2384R853
Price: 11356 INR
Availability: OutOfStock

₹11,356 (Incl. of all taxes)

₹9,626 ₹1,730 GST

MRP ₹15,921 28% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Screwed Female Ends to Bspt.
Straight Pattern, Screwed in Bonnet, Inside Screw & Rising Stem.
Provision for Re-Packing Under Pressure.
Handwheel Operated & Premium Quality Lubricated Gland Packing.

Show All Key Features

Product Specifications

Brand	Zoloto
Body Material	Bronze
End Connection	Flanged Ends
Item Code	1042
Material	Body Seat Ring: Stainless Steel Disc: Stainless Steel Disc Nut: Bronze Stem: Stainless Steel Safety Lock: Brass Sheet Bonnet: Bronze Gland Packing: Asbestos Gland: Bronze Gland Nut: Bronze Handwheel: Cast Iron Washer: Carbon Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	32 mm
Size (Inch)	1-1/4 inch
Suitable For	Water Steam
Testing Pressure	Shell: 500 psig Seat: 250 psig
Type	Flanged
Working Temperature	225 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Valve
Dimensions LxWxH	63x38x12 cm
Weight	31.3 kg

Show All Specifications

Product Details

Introducing the Zoloto 32mm Bronze Flanged Globe Steam Stop Valve, 1042 from the globe valves category by Zoloto. This flanged valve features a 1 1/4 inch size and is designed to withstand temperatures up to 225 deg C. With screw female ends to BSPT, a straight pattern, and a screwed in bonnet, this valve offers ease of operation. The valve is equipped with an inside screw & rising stem, provision for re-packing under pressure, handwheel operation, and premium quality lubricated gland packing. With a shell testing pressure of 500 psig and seat testing pressure of 250 psig, this valve is built for durability and performance.
