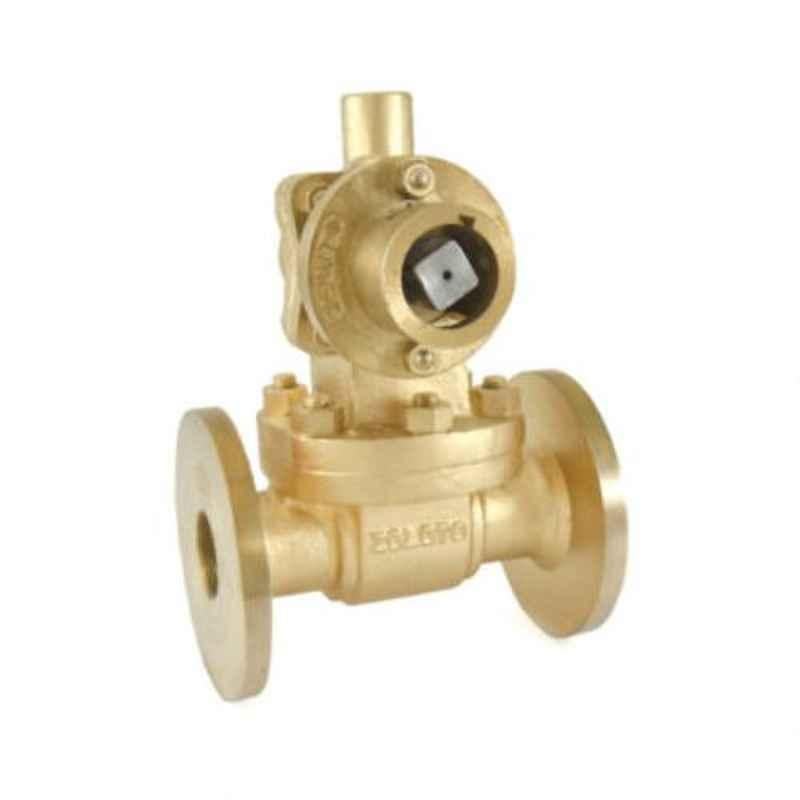

Zoloto 32mm Bronze Parallel Slide Blow Off Flanged Valve, 1052

Name: Zoloto 32mm Bronze Parallel Slide Blow Off Flanged Valve, 1052
Brand: Zoloto
SKU: MSNQ94PGQ7ONK0
Price: 23669 INR
Availability: OutOfStock

₹23,669 (Incl. of all taxes)

₹20,058 ₹3,611 GST

MRP ₹33,187 28% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Flanged Ends to Bs 10 Table �H�.
Maintains Fluid Tightness & Easy in Operation Because of Sliding�Action of Discs.
Discs Are Kept in Close Contact with Body Rings By Means of A Spring�When the Valve is Under Pressure.
Premium Quality Lubricated Gland Packing & Bolted Bonnet..

Show All Key Features

Product Specifications

Brand	Zoloto
Body Material	Bronze
End Connection	Flanged Ends
Item Code	1052
Material	Bonnet: Bronze Rack: Bronze Studs: Alloy�Steel Nuts: H.T Steel Gasket: Steam Joining Sheet Body Seat Ring: Stainless Steel Male Disc: Stainless Steel Female Disc: Stainless Steel Spring: Stainless Steel Pinion: Stainless Steel Nuts: H.T. Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	32 mm
Size (Inch)	1-1/4 inch
Suitable For	Water Steam
Testing Pressure	Shell: 500 psig Seat: 250 psig
Type	Flanged
Working Temperature	225 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Flanged Valve
Dimensions LxWxH	131x79x28 cm
Weight	65.3 kg

Show All Specifications

Product Details

The Zoloto 32mm Bronze Parallel Slide Blow Off Flanged Valve, 1052 is a top-of-the-line relief valve designed for high-temperature applications up to 225 deg C. With flanged ends to BS 10 Table ?H?, this valve ensures fluid tightness and easy operation due to the sliding action of the discs. The valve maintains close contact between the discs and body rings with the help of a spring when under pressure. Made from premium quality materials such as bronze, alloy steel, and stainless steel, this valve is built to last. Suitable for use with water and steam, this valve has a test pressure of Shell: 500 psig and Seat: 250 psig. Don't compromise on quality, choose Zoloto for your relief valve needs.
