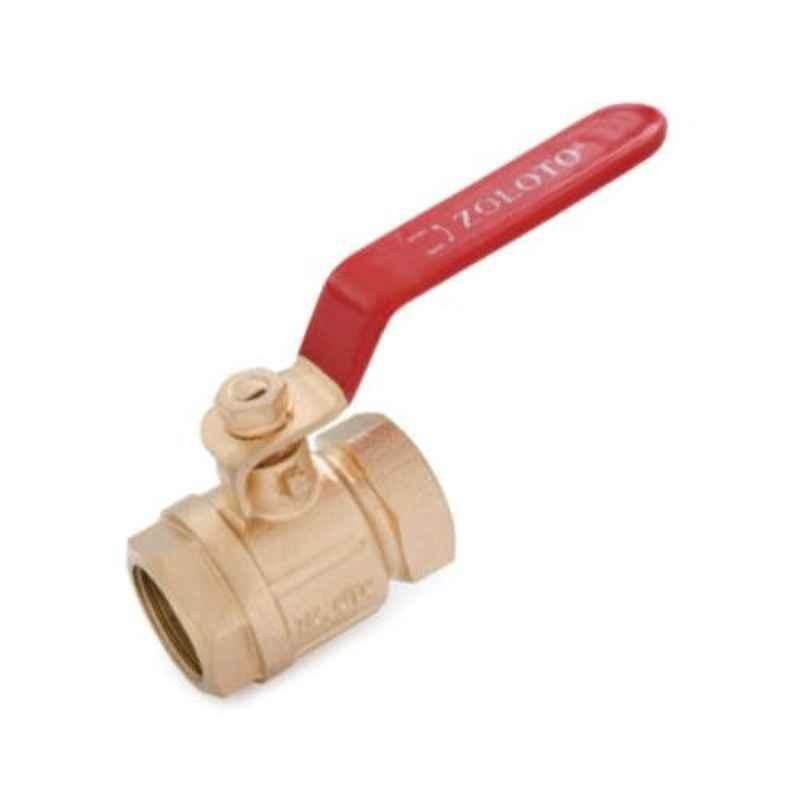

Zoloto 32mm Bronze Screwed Ball Valve, 1008

Name: Zoloto 32mm Bronze Screwed Ball Valve, 1008
Brand: Zoloto
SKU: MSN75DQZ0ZGD92
Price: 3709 INR
Availability: OutOfStock

₹3,709 (Incl. of all taxes)

₹3,144 + ₹565 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Screwed Female Ends to is 554 / Bs 21 / Iso 7.
Full Bore, Two Piece Design.
Quarter Turn, Lever Operated.
Provided with Stainless Steel Ball.
Premium Quality Ptfe Gland Packing & Seating..

Show All Key Features

Product Specifications

Brand	Zoloto
Bore Type	Full
Nominal Size	32 mm
Number of Ways	2
Body Material	Bronze
Design	Two Piece
End Connection	Screwed End
Item Code	1008
Seat Test Pressure	225 psig
Thread Type	BSP Female
Additional Details	Bonnet Material: Bronze Body Seat Ring Material: PTFE Thrust Washer Material: PTFE Gland Packing Material: PTFE Stem Material: Stainless Steel Gland Material: Forged Brass Lever Material: Mild Steel Nut Material: Carbon Steel
Ball Material	Stainless Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	1-1/4 inch
Standards	Stem: ASTM A276 Type 410 Gland: IS 6912 Gr. FLB Bonnet: IS 318 GR. LTB 2 / IS 6912 Gr. FLB Body: IS 318 Gr. LTB 2 Ball: ASTM A276 Type 304 / ASTM A351 Gr. CF8
Suitable For	Water, Oil
Testing Pressure	Shell: 350 psig
Type	Screwed
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Ball Valve
Dimensions LxWxH	15x9x2 cm
Weight	7.2 kg

Show All Specifications

Product Details

Upgrade your plumbing system with the Zoloto 32mm Bronze Screwed Ball Valve, 1008. This two-piece ball valve is designed for durability and maximum performance. The screwed female ends conform to IS 554/BS 21/ISO 7 standards. With a full bore design, stainless steel ball, and premium quality PTFE gland packing and seating, this valve is built to withstand high temperatures up to 220 deg C. The quarter-turn lever operation makes it easy to use, perfect for a variety of industrial applications. Trust Zoloto for high-quality valves that meet your needs.
