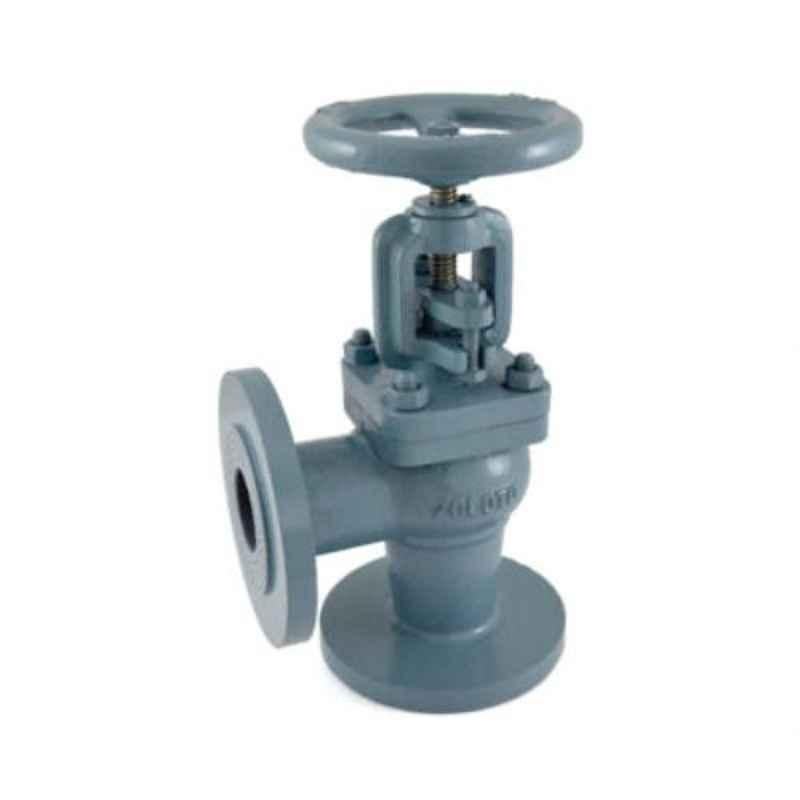

Zoloto 32mm Cast Iron Angle Pattern Flanged Globe Steam Stop Valve, 1066

Name: Zoloto 32mm Cast Iron Angle Pattern Flanged Globe Steam Stop Valve, 1066
Brand: Zoloto
SKU: MSNM9XYGQ6YDKJ
Price: 4388 INR
Availability: OutOfStock

₹4,388 (Incl. of all taxes)

₹3,721 ₹667 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Flanged Ends to Din 2533 Pn 16Rf.
Angle Pattern, Outside Screw, Yoke Type & Rising Stem.
Renewable 13% Cr. Stainless Steel Working Parts.
Provision for Re-Packing Under Pressure & Minimum Pressure Drop Inside the Body Due to Streamlined Body Design.

Show All Key Features

Product Specifications

Brand	Zoloto
Body Material	Cast Iron
End Connection	Flanged Ends
Item Code	1066
Material	Nut: Carbon Steel Washer: Carbon Steel Handwheel: Cast Iron Stem: Stainless Steel Yoke Bush: Bronze Locking Screw: Carbon Steel Gland Flange: Cast Iron Bonnet: Cast Iron Gland Packing: Braided Graphited Asbestos Studs: Carbon Steel Nuts: Carbon Steel Gasket: Steam Jointing Sheet
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	32 mm
Size (Inch)	1-1/4 inch
Suitable For	Water Steam
Test Pressure	Shell:370 psig Seat:185 psig
Type	Flanged
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Valve
Dimensions LxWxH	19x11x4 cm
Weight	9.1 kg

Show All Specifications

Product Details

The Zoloto 32mm Cast Iron Angle Pattern Flanged Globe Steam Stop Valve, 1066 is a high-quality globe valve designed for use with water and steam applications. This valve features a flanged end to DIN 2533 PN 16RF, angle pattern, and outside screw, yoke type & rising stem design for easy operation. The valve is made with renewable 13% Cr. stainless steel working parts and has a streamlined body design to minimize pressure drop. Suitable for working temperatures up to 220 deg C, this valve is durable and efficient for various industrial applications. Trust Zoloto for reliable and high-performance valves.
