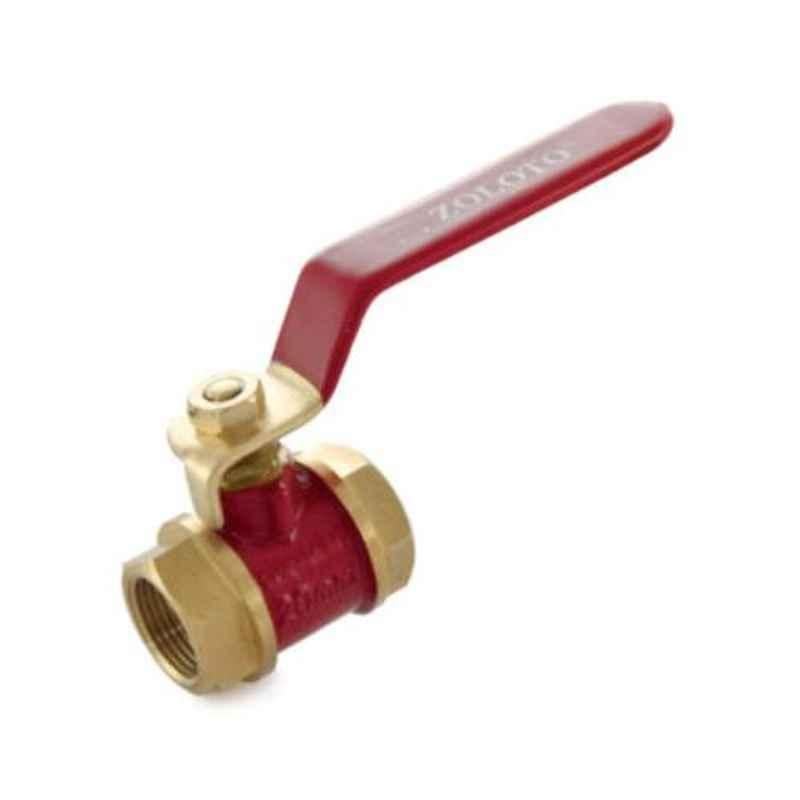

Zoloto 32mm E-Model Bronze Screwed Ball Valve, 1008 A

Name: Zoloto 32mm E-Model Bronze Screwed Ball Valve, 1008 A
Brand: Zoloto
SKU: MSNRKREDOL739N
Price: 3093 INR
Availability: OutOfStock

₹3,093 (Incl. of all taxes)

₹2,621 ₹472 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Screwed Female Ends to IS 554/BS21/ISO 7.
Full Bore, Two Piece Design.
Quarter Turn, Lever Operated.
Provided With Stainless Steel Ball.
Premium Quality PTFE Gland Packing & Seating..

Show All Key Features

Product Specifications

Brand	Zoloto
Bore Type	Full
Nominal Size	32 mm
Number of Ways	2
Body Material	Bronze
Body Test Pressure	285 psig
End Connection	Screwed End
Item Code	1008 A
Seat Test Pressure	192 psig
Thread Type	BSP Female
Additional Details	Bonnet Material: Bronze Ball Material: Stainless Steel Body Seat Ring Material: PTFE Thrust Washer Material: PTFE Gland Packing Material: PTFE Stem Material: Stainless Steel Gland Material: Forged Brass Lever Material: Mild Steel Nut Material: Carbon Steel
Ball Material	Stainless Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	1-1/4 inch
Suitable For	Water, Oil
Type	Screwed
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Ball Valve
Dimensions LxWxH	12x8x2 cm
Weight	6 kg

Show All Specifications

Product Details

The Zoloto 32mm E-Model Bronze Screwed Ball Valve, 1008 A is a top-of-the-line product in the ball valve category. With a nominal size of 32 mm, seat test pressure of 192 psig, and working temperature of 220 deg C, this valve is designed to deliver exceptional performance. The valve features a screwed end connection, stainless steel ball, and bronze body for durability. Its key features include a full bore, two-piece design, quarter turn, lever operation, and premium quality PTFE gland packing & seating. Built to last and easy to operate, this valve is a must-have for any industrial or commercial application.
