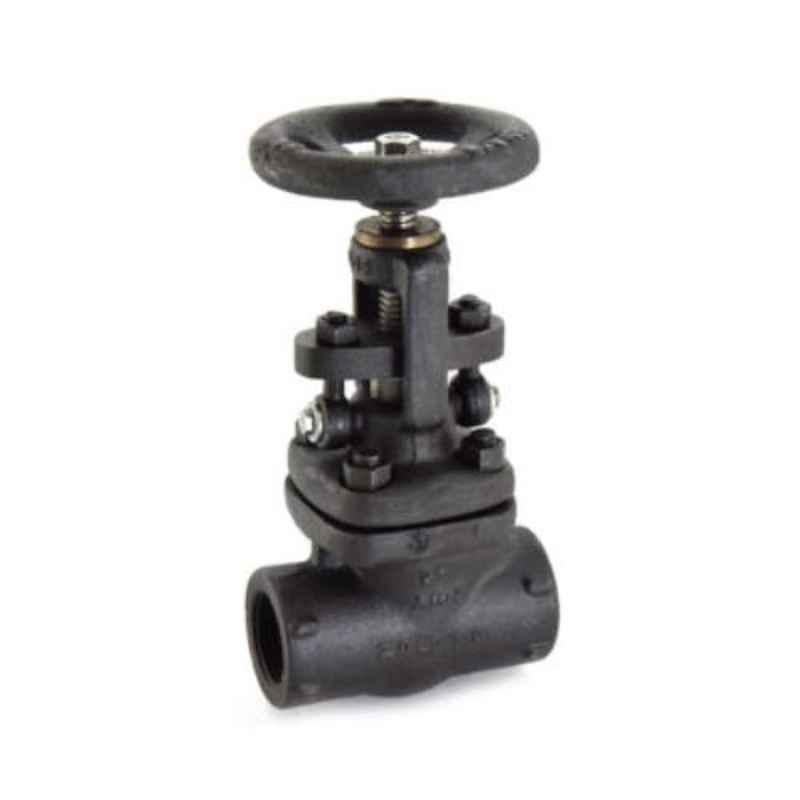

Zoloto 32mm Forged Steel Class-800 Full Bore Globe Valve, 1074A

₹8,384 (Incl. of all taxes)

₹7,107 ₹1,277 GST

AVAILABLE ON REQUEST

About This Product

Key Features

  • Design Standard Api 602 & Bsen Iso 15761.

  • Body & Bonnet Are Phosphated, to Ensure Maximum Resistance from Rust.

  • Bolted Bonnet, Outside Screw, Yoke Type, Rising Stem.

  • Screwed Female Ends to Bspt / Npt / Socket Welded to Ansi B16.11.

Show All Key Features

Product Specifications

Brand
Body Material
Forged Carbon Steel
End Connection
Female Ends
Item Code
1074A
Material
Body: Forged Carbon Steel
Body Seat Ring: Stainless Steel
Disc: Stainless Steel
Stem: Stainless Steel
Check Nut: Stainless Steel
Gasket: Spiral Wound S.S (Type 316) Graphite Filled
Bonnet: Forged Carbon Steel
Bonnet Nut: Alloy Steel
Stud: Alloy Steel
Gland Packing: Non Asbestos Graphite with Corrosion Inhibitor
Gland: Stainless Steel
Gland Flange: Carbon Steel
Notes
This Item is Not Returnable
Image is only for refrence purpose
Size
32 mm
Size (Inch)
1-1/4 inch
Suitable For
Water
Oil
Steam
Air
Gas
Test Pressure
Shell:3000 psig
Seat:2200 psig
Type
Screwed
Working Temperature
425 deg C
Country of origin
India
Manufacturer Details
S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details
S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name
Valve
Dimensions LxWxH
36x22x6 cm
Weight
17.8 kg
Show All Specifications

Product Details

Experience superior engineering and reliability with the Zoloto 32mm Forged Steel Class-800 Full Bore Globe Valve, 1074A. This robust globe valve from Zoloto is designed to withstand high working temperatures of up to 425 deg C, making it perfect for various applications including water, oil, steam, air, and gas. The screwed type valve features a forged carbon steel body and bonnet that are phosphated for maximum rust resistance. It also comes with a bolted bonnet, outside screw, yoke type, rising stem, and female ends for easy installation. Trust Zoloto for quality and durability in every valve.

Browse through the extensive list of Globe Valves at Moglix. Shop online for other Zoloto Globe Valves. available at Moglix in the lowest price range.
