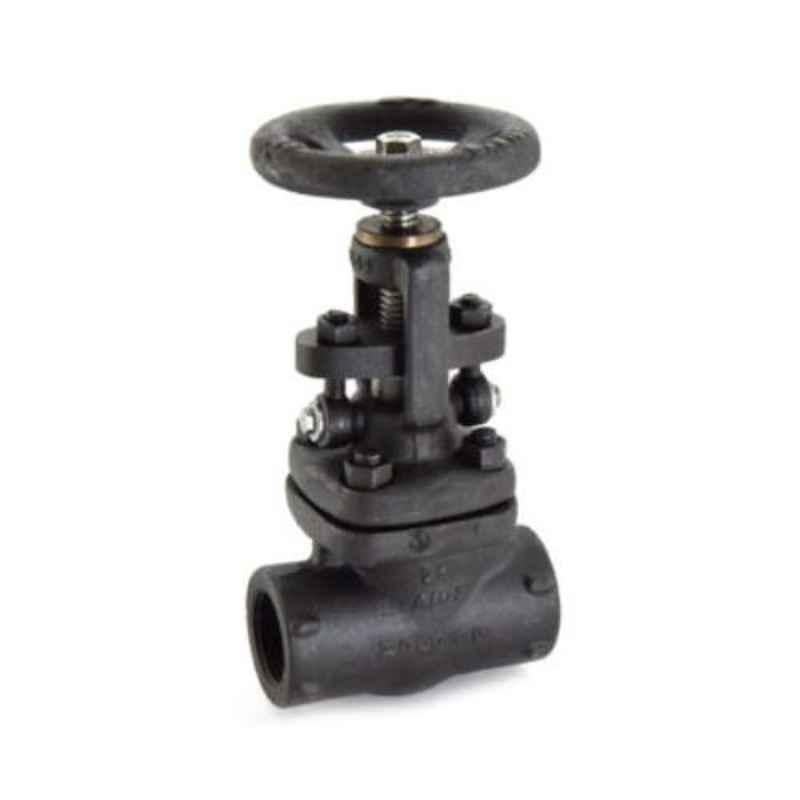

Zoloto 32mm Forged Steel Class-800 Standard Bore Globe Valve, 1074

Name: Zoloto 32mm Forged Steel Class-800 Standard Bore Globe Valve, 1074
Brand: Zoloto
SKU: MSNNKQG2DLJZ9X
Price: 7130 INR
Availability: OutOfStock

MRP ₹7,130 (Incl. of all taxes)

₹6,041 + ₹1,089 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Design Standard Api 602 & Bsen Iso 15761.
Body & Bonnet Are Phosphated, to Ensure Maximum Resistance from Rust.
Bolted Bonnet, Outside Screw, Yoke Type, Rising Stem.
Screwed Female Ends to Bspt / Npt / Socket Welded to Ansi B16.11.

Show All Key Features

Product Specifications

Brand	Zoloto
Body Material	Forged Carbon Steel
End Connection	Female Ends
Item Code	1074
Material	Body: Forged Carbon Steel Body Seat Ring: Stainless Steel Disc: Stainless Steel Stem: Stainless Steel Check Nut: Stainless Steel Gasket: Spiral Wound S.S (Type 316) Graphite Filled Bonnet: Forged Carbon Steel Bonnet Nut: Alloy Steel Stud: Alloy Steel Gland Packing: Non Asbestos Graphite with Corrosion Inhibitor Gland: Stainless Steel Gland Flange: Carbon Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	32 mm
Size (Inch)	1-1/4 inch
Suitable For	Water Oil Steam Air Gas
Test Pressure	Shell:3000 psig Seat:2200 psig
Type	Screwed
Working Temperature	425 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Valve
Dimensions LxWxH	22x13x5 cm
Weight	10.8 kg

Show All Specifications

Product Details

The Zoloto 32mm Forged Steel Class-800 Standard Bore Globe Valve, 1074 is a high-quality valve perfect for various applications such as water, oil, steam, air, and gas. This screwed valve features a forged carbon steel body and bonnet that are phosphated for maximum rust resistance. With a design standard of API 602 & BSEN ISO 15761, this valve also boasts a bolted bonnet, outside screw, yoke type, rising stem, and female ends screwed to BSPT/NPT/Socket Welded to ANSI B16.11. Trust Zoloto for reliable and durable industrial valves.

Browse through the extensive list of Globe Valves at Moglix. Shop online for other Zoloto Globe Valves. available at Moglix in the lowest price range.
