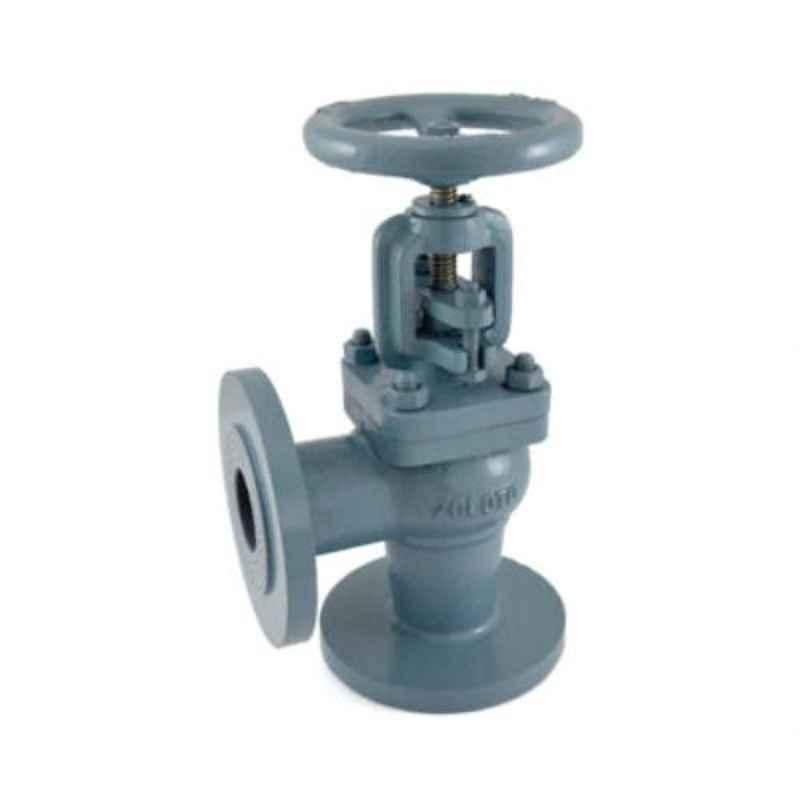

Zoloto 40mm Cast Iron Angle Pattern Flanged Globe Steam Stop Valve, 1066

Name: Zoloto 40mm Cast Iron Angle Pattern Flanged Globe Steam Stop Valve, 1066
Brand: Zoloto
SKU: MSN153VWR8VYK3
Price: 6051 INR
Availability: OutOfStock

₹6,051 (Incl. of all taxes)

₹5,130 + ₹921 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Flanged Ends to Din 2533 Pn 16Rf.
Angle Pattern, Outside Screw, Yoke Type & Rising Stem.
Renewable 13% Cr. Stainless Steel Working Parts.
Provision for Re-Packing Under Pressure & Minimum Pressure Drop Inside the Body Due to Streamlined Body Design.

Show All Key Features

Product Specifications

Brand	Zoloto
Body Material	Cast Iron
End Connection	Flanged Ends
Item Code	1066
Material	Nut: Carbon Steel Washer: Carbon Steel Handwheel: Cast Iron Stem: Stainless Steel Yoke Bush: Bronze Locking Screw: Carbon Steel Gland Flange: Cast Iron Bonnet: Cast Iron Gland Packing: Braided Graphited Asbestos Studs: Carbon Steel Nuts: Carbon Steel Gasket: Steam Jointing Sheet
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	40 mm
Size (Inch)	1-1/2 inch
Suitable For	Water Steam
Test Pressure	Shell:370 psig Seat:185 psig
Type	Flanged
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Valve
Dimensions LxWxH	26x16x5 cm
Weight	12.6 kg

Show All Specifications

Product Details

The Zoloto 40mm Cast Iron Angle Pattern Flanged Globe Steam Stop Valve, 1066 is a quality globe valve by Zoloto designed for use with water and steam. With a flanged end to Din 2533 Pn 16Rf and a size of 40mm, this valve is made of durable cast iron and features an angle pattern, outside screw, yoke type & rising stem. The renewable 13% Cr. stainless steel working parts ensure longevity, while the streamlined body design minimizes pressure drop inside the body. This valve also includes a provision for re-packing under pressure. Perfect for high-temperature applications up to 220 deg C.
