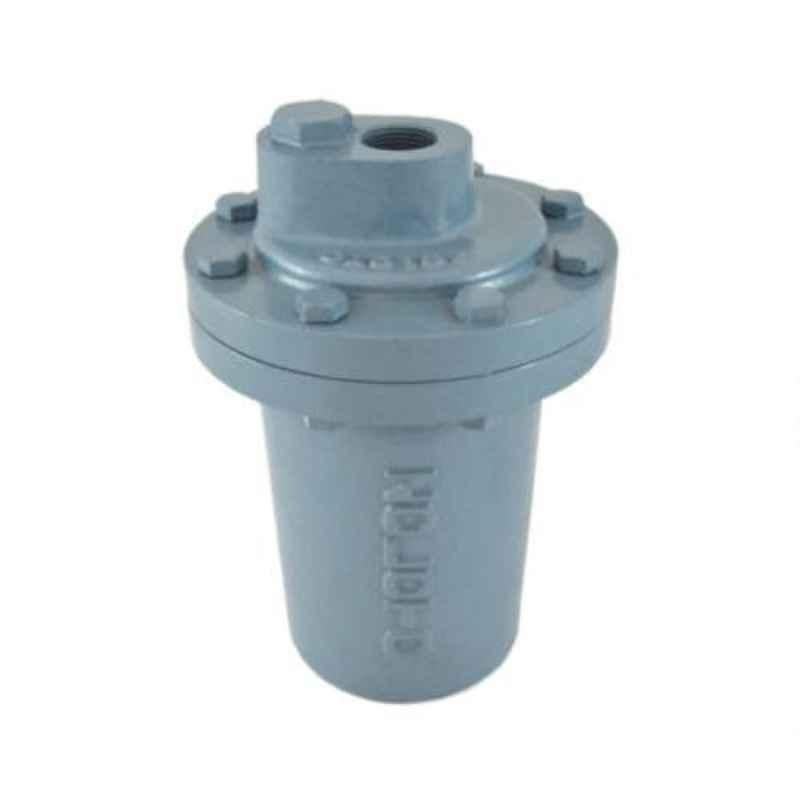

Zoloto 40mm Cast Iron Bucket Type Screwed Steam Trap, 1090

AVAILABLE ON REQUEST

About This Product

Key Features

Screwed Female Ends to Bsp.
Inverted Bucket Type & Bolted Cover.
Flanged End to Bs 10 Table J & Automatic Shut Off Device in Water Arm..

Product Specifications

Brand	Zoloto
Body Material	Cast Iron
End Connection	Female Ends
Item Code	1090
Material	Plug: Bronze Gasket: Steam Jointing Sheet Cover: Cast Iron Valve Seat: Stainless Steel Gasket: Steam Jointing Sheet Valve: Stainless Steel Valve Lever: Stainless Steel Valve Hook: Stainless Steel Bucket Hook: Stainless Steel Bucket: Stainless Steel Body: Cast Iron Bucket Ring: Cast Iron
Notes	This Item is Not Returnable Box Opening Video will be Required for any Type of Exchange Image is only for refrence purpose
Size	40 mm
Size (Inch)	1-1/2 inch
Suitable For	Steam
Test Pressure	Shell:300 psig Seat:150 psig
Type	Screwed
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Screwed Steam Trap
Dimensions LxWxH	54x33x14 cm
Weight	26.7 kg

Show All Specifications

Product Details

The Zoloto 40mm Cast Iron Bucket Type Screwed Steam Trap, 1090 is a top-of-the-line pneumatic control valve designed for steam applications. With a body made of durable cast iron and a size of 40mm, this valve is built to withstand high temperatures up to 220 degrees Celsius. The screwed female ends to BSP, inverted bucket type, and bolted cover ensure secure installation and reliable performance. Additionally, the flanged end to BS 10 Table J and automatic shut off device in water arm provide added convenience and safety. Trust Zoloto for quality engineering solutions.
