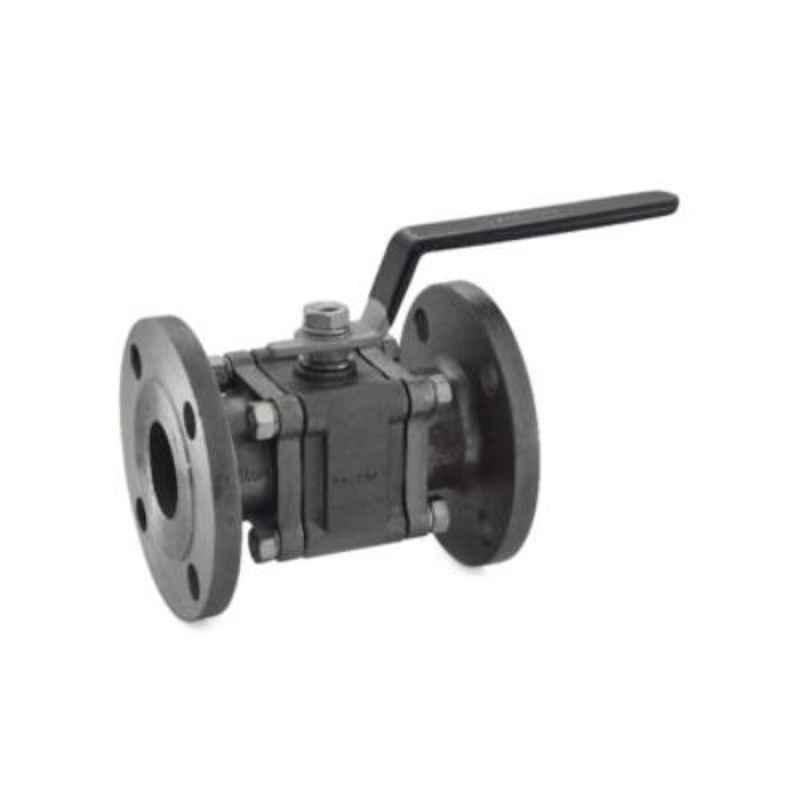

Zoloto 40mm Cast Steel Class-150 Flanged Three Piece Design Ball Valve, 1089

Name: Zoloto 40mm Cast Steel Class-150 Flanged Three Piece Design Ball Valve, 1089
Brand: Zoloto
SKU: MSN8580VWVY492
Price: 8910 INR
Availability: OutOfStock

₹8,910 (Incl. of all taxes)

₹7,552 + ₹1,358 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Design Standard Bs En Iso 17292.
Screwed Female Ends to Bsp.
Flanged Ends to Ansi B16.5 Class-150.
Three Piece Design & Superb in Quality & Performance.

Show All Key Features

Product Specifications

Brand	Zoloto
Bore Type	Full
Nominal Size	40 mm
Number of Ways	3
Body Material	Cast Iron
Body Test Pressure	300 psig
End Connection	Flanged End
Item Code	1089
Seat Test Pressure	200 psig
Additional Details	Ball: Stainless Steel Thrust Washer: PTFE 35% Carbon Filled Stem: Stainless Steel Packing Ring: PTFE 35% Carbon Filled Gland: Stainless Steel Cup Washer: Stainless Steel Nut: H.T Steel Spring Washer: Spring Steel / Stainless Steel Lever: Carbon Steel Body Seat Ring: PTFE Gasket: PTFE
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	1-1/2 inch
Suitable For	Water, Oil, Steam
Type	Flanged
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Ball Valve
Dimensions LxWxH	37x22x8 cm
Weight	18.2 kg

Show All Specifications

Product Details

Upgrade your industrial equipment with the Zoloto 40mm Cast Steel Class-150 Flanged Three Piece Design Ball Valve, 1089. This ball valve is designed to withstand high pressure, with a seat test pressure of 200 psig and a body test pressure of 300 psig. The valve features a flanged end connection and a 1 1/2 inch size, making it versatile for various applications. Built with durable cast iron material, this valve can handle a working temperature of up to 220 deg C. Trust in Zoloto's quality and performance, as this valve meets design standards BS EN ISO 17292 and features screwed female ends to BSP and flanged ends to ANSI B16.5 Class-150. Elevate your operations with this reliable and efficient ball valve from Zoloto.
