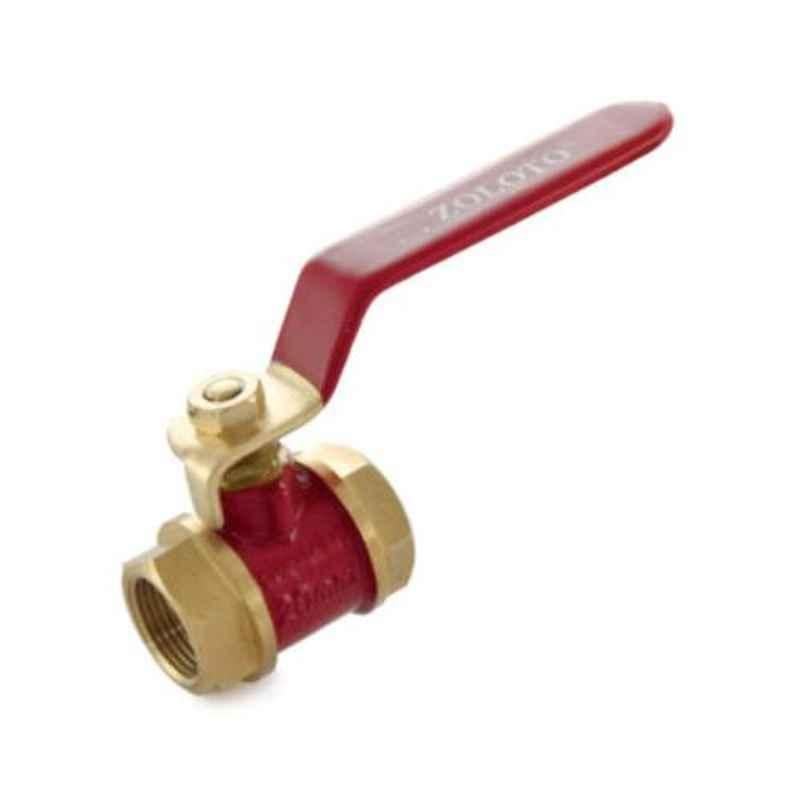

Zoloto 40mm E-Model Bronze Screwed Ball Valve, 1008 A

Name: Zoloto 40mm E-Model Bronze Screwed Ball Valve, 1008 A
Brand: Zoloto
SKU: MSNL5GLZNWXPK4
Price: 4709 INR
Availability: OutOfStock

₹4,709 (Incl. of all taxes)

₹3,992 + ₹717 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Screwed Female Ends to IS 554/BS21/ISO 7.
Full Bore, Two Piece Design.
Quarter Turn, Lever Operated.
Provided With Stainless Steel Ball.
Premium Quality PTFE Gland Packing & Seating..

Show All Key Features

Product Specifications

Brand	Zoloto
Bore Type	Full
Nominal Size	40 mm
Number of Ways	2
Body Material	Bronze
Body Test Pressure	285 psig
End Connection	Screwed End
Item Code	1008 A
Seat Test Pressure	192 psig
Thread Type	BSP Female
Additional Details	Bonnet Material: Bronze Ball Material: Stainless Steel Body Seat Ring Material: PTFE Thrust Washer Material: PTFE Gland Packing Material: PTFE Stem Material: Stainless Steel Gland Material: Forged Brass Lever Material: Mild Steel Nut Material: Carbon Steel
Ball Material	Stainless Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	1-1/2 inch
Suitable For	Water, Oil
Type	Screwed
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Ball Valve
Dimensions LxWxH	19x11x3 cm
Weight	9.1 kg

Show All Specifications

Product Details

The Zoloto 40mm E-Model Bronze Screwed Ball Valve, 1008 A is a top-of-the-line ball valve designed for optimal performance and durability. With a seat test pressure of 192 psig and a body test pressure of 285 psig, this valve is built to withstand high-pressure environments. The 1 1/2 inch size and bronze body material make it suitable for a wide range of applications. The valve features Screwed Female Ends to IS 554/BS21/ISO 7 standards, a full bore design, and a two-piece construction for easy maintenance. The quarter turn lever operation and stainless steel ball ensure smooth and reliable performance. Additionally, the premium quality PTFE gland packing and seating provide a tight seal for enhanced efficiency. Trust Zoloto for high-quality and reliable ball valves for your industrial needs.
