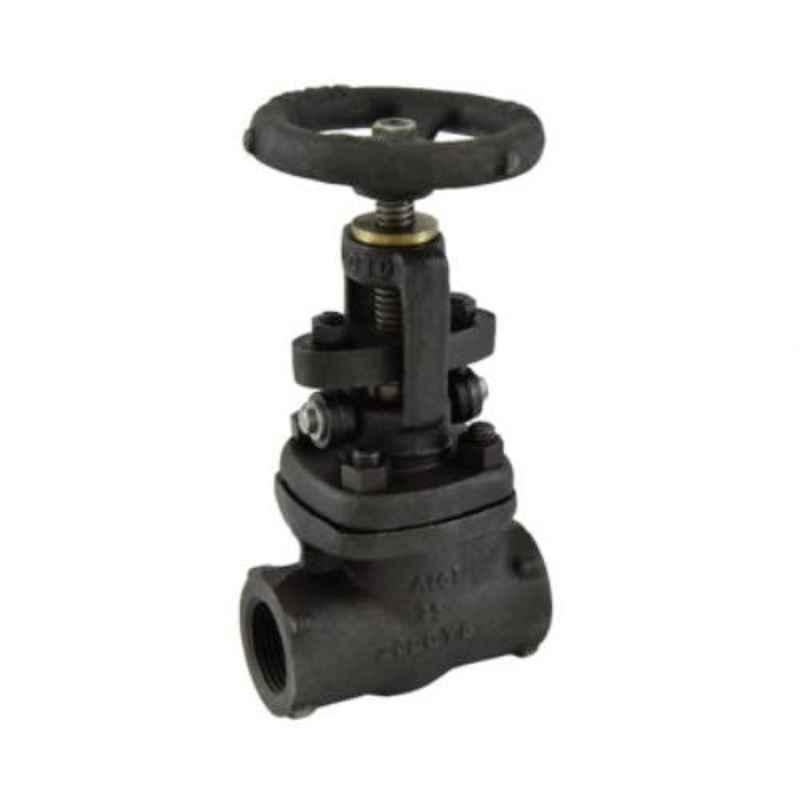

Zoloto 40mm Forged Steel Class-800 Standard Bore Gate Valve, 1075

Name: Zoloto 40mm Forged Steel Class-800 Standard Bore Gate Valve, 1075
Brand: Zoloto
SKU: MSNO5WNWRENW51
Price: 9317 INR
Availability: OutOfStock

₹9,317 (Incl. of all taxes)

₹7,895 ₹1,422 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Design Standard Api 602 & Bsen Iso 15761.
Body & Bonnet Are Phosphated, to Ensure Maximum Resistance from Rust.
Bolted Bonnet, Outside Screw, Yoke Type, Rising Stem.
Screwed Female Ends to Bspt / Npt / Socket Welded to Ansi B16.11.

Show All Key Features

Product Specifications

Brand	Zoloto
Size	40 mm
Body Material	Forged Carbon Steel
End Connection	Screwed End
Item Code	1075
Suitable For	Water Oil Steam
Additional Details	Body Seat Ring: Stainless Steel Wedge (Solid): Stainless Steel Stem: Stainless Steel Gasket: Spiral Wound S.S (Type 316) Graphite Filled Bonnet: Forged Carbon Steel Bonnet Nut: Alloy Steel Stud: Alloy Steel Gland Packing: Non Asbestos Graphite with Corrosion Inhibitor Gland: Stainless Steel Gland Flange: Carbon Steel Eye Bolt: Stainless Steel End Type: Female Screwed
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	1-1/2 inch
Test Pressure	Shell:3000 psig Seat:2200 psig
Type	Screwed
Working Temperature	425 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Valve
Dimensions LxWxH	40x24x6 cm
Weight	19.8 kg

Show All Specifications

Product Details

The Zoloto 40mm Forged Steel Class-800 Standard Bore Gate Valve, Model 1075, is a top-of-the-line product from the renowned brand Zoloto. This gate valve is made from high-quality forged carbon steel and designed to withstand extreme temperatures up to 425 deg C, making it suitable for a variety of applications including water, oil, and steam. It features a bolted bonnet, outside screw, yoke type, rising stem, and screwed female ends to BSPT/NPT/socket welded to ANSI B16.11 standards. With a design standard of API 602 & BSEN ISO 15761, this gate valve ensures maximum resistance from rust, providing exceptional durability and performance. Trust Zoloto for reliable and efficient flow control solutions.
