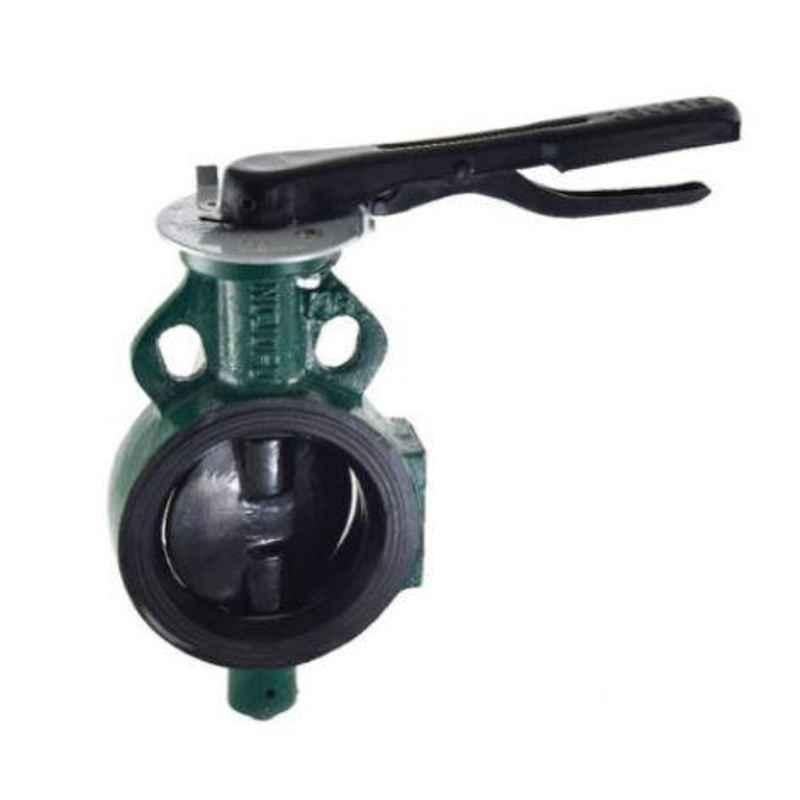

Zoloto 40mm PN-1.6 S.G Iron Disc Wafer Type Butterfly Valve, 1078
₹2,961 (Incl. of all taxes)
₹2,509 ₹452 GST
About This Product
Key Features
SG Iron disc which is accurately guided between the two stems.
Two Piece Stem design which is precisely guided between the PTFE / Bronze bushes.
Compatible to sandwich between flanges as per BS 10 Table D, E, F,H, DIN, PN 10, PN16, PN 25, PN 40, ASA 150, ASA 300, IS 778, IS 6392 Table 17 and IS 1538..
Integrally moulded rubber lining (EPDM / Nitrile / Neoprene/Viton/Silicon) as per requirement which provides seating to the valve disc, as a primary seal to the stem and gasket joint with matching pipe flanges.
Show All Key Features
Product Specifications
Brand | |
End Connection | Wafer Type |
Size | 40 mm |
Body Material | S.G Iron |
Disc Type | SG Iron |
Item Code | 1078 |
Pressure Rating | PN 1.6 |
Suitable For | Water |
Additional Details | Flow Control Lever: Carbon Steel (Powder Coated) Notch Plate: Carbon Steel (Powder Coated) Packing Bush: PTFE / Bronze Upper Stem: Stainless Steel Body: S.G Iron Disc: S.G Iron Name Plate: Aluminium Bush: PTFE / Bronze Lower Stem: Stainless Steel O-Ring: Nitrile Rubber Dowel Pin: Spring Steel C Sunk Screw & Nuts: Carbon Steel |
Notes | This Item is Not Returnable Image is only for refrence purpose |
Operating Mode | Lever Operated |
Size (Inch) | 1-1/2 inch |
Standards | IS 13095 / BS EN 593 (BS 5155) |
Test Pressure | Shell:2.4 MPa Seat:1.76 MPa |
Type | Wafer |
Working Pressure | 1.6 MPa |
Working Temperature | 90 deg C |
Country of origin | India |
Manufacturer Details | S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444 |
Packer Details | S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444 |
Common/Generic Name | Butterfly Valve |
Dimensions LxWxH | 13x8x4 cm |
Weight | 6.1 kg |
Show All Specifications
Product Details
The Zoloto 40mm PN-1.6 S.G Iron Disc Wafer Type Butterfly Valve, Model 1078, is a reliable and efficient valve suitable for various industrial applications. This butterfly valve features an SG Iron disc that is accurately guided between two stems, ensuring smooth operation. The two-piece stem design is precisely guided between PTFE/bronze bushes, enhancing durability. This valve is compatible with various flange standards such as BS 10, DIN, PN, ASA, and IS, making it versatile for different piping systems. Additionally, the integrally moulded rubber lining provides excellent sealing properties for optimal performance. Upgrade your industrial setup with the Zoloto Butterfly Valve for reliable and efficient fluid control.
