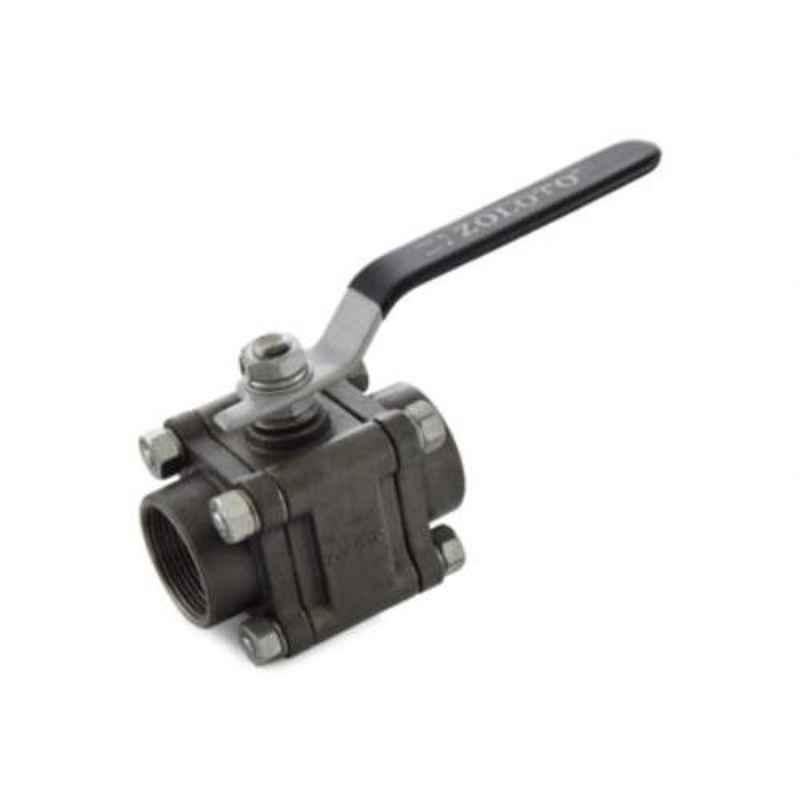

Zoloto 50mm Cast Steel Class-150 Screwed Three Piece Design Ball Valve, 1088

Name: Zoloto 50mm Cast Steel Class-150 Screwed Three Piece Design Ball Valve, 1088
Brand: Zoloto
SKU: MSN8580VWYWL92
Price: 8293 INR
Availability: OutOfStock

₹8,293 (Incl. of all taxes)

₹7,029 + ₹1,264 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Design Standard Bs En Iso 17292 (Bs 5351).
Screwed Female Ends to Bspt / Npt / Socket Weld.
Reduced Bore, Three Piece Design & Superb in Quality & Performance.

Product Specifications

Brand	Zoloto
Bore Type	Reduce
Nominal Size	50 mm
Number of Ways	3
Body Material	Cast Iron
Body Test Pressure	300 psig
End Connection	Screwed End
Item Code	1088
Seat Test Pressure	200 psig
Thread Type	BSP Female
Additional Details	Ball: Stainless Steel Thrust Washer: PTFE 35% Carbon Filled Stem: Stainless Steel Packing Ring: PTFE 35% Carbon Filled Gland: Stainless Steel Cup Washer: Stainless Steel Nut: H.T Steel Spring Washer: Spring Steel / Stainless Steel Lever: Carbon Steel Body Seat Ring: PTFE Gasket: PTFE
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	2 inch
Suitable For	Water, Oil, Steam
Type	Screwed
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Ball Valve
Dimensions LxWxH	34x21x6 cm
Weight	17 kg

Show All Specifications

Product Details

The Zoloto 50mm Cast Steel Class-150 Screwed Three Piece Design Ball Valve, 1088 is a top-of-the-line product in the Ball Valves category. With a seat test pressure of 200 psig and a body test pressure of 300 psig, this valve is designed for durability and reliability. The screw female ends to BSPT/NPT/Socket Weld make installation a breeze, while the reduced bore and three-piece design ensure optimal performance. Made from high-quality cast iron, this valve can withstand working temperatures of up to 220 deg C. Trust Zoloto for superior quality and performance in all your valve needs.
