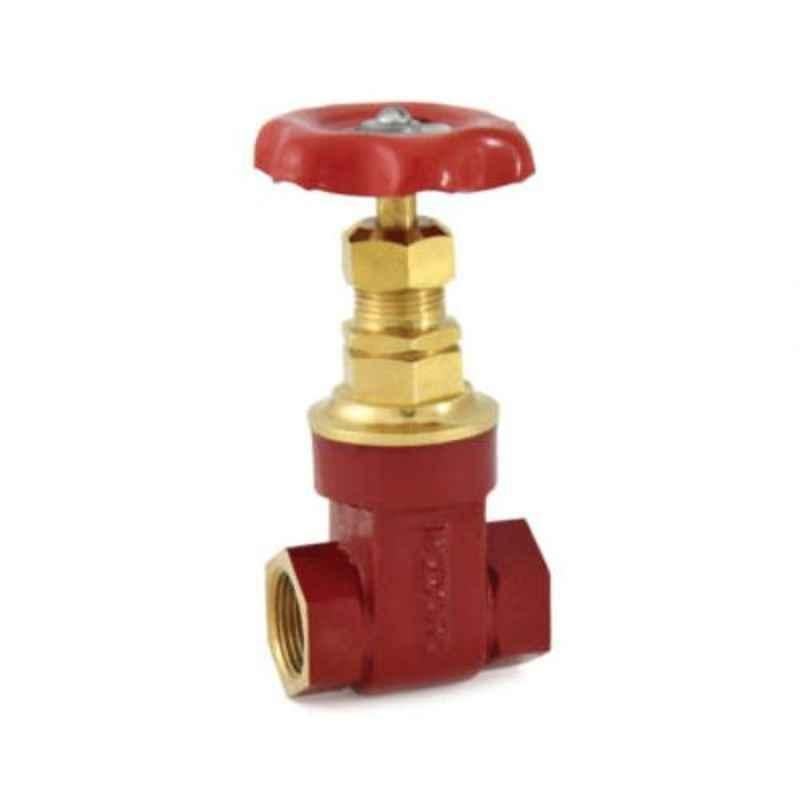

Zoloto 50mm Class-2 Bronze Screwed Gate Valve, 1035 A

Name: Zoloto 50mm Class-2 Bronze Screwed Gate Valve, 1035 A
Brand: Zoloto
SKU: MSNZ52670LEW9X
Price: 8245 INR
Availability: OutOfStock

₹8,245 (Incl. of all taxes)

₹6,987 + ₹1,258 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Screwed Female Ends to is 554 / Bs 21 / Iso 7.
Screwed in Bonnet, Inside Screw, Non-Rising Stem, Integral Seat, Solid Wedge.
Designed Sheet Metal Handwheel for A Firm Grip & Convenient Operation.
Premium Quality Ptfe Gland Packing & Design Standard is 778 & Class-1..

Show All Key Features

Product Specifications

Brand	Zoloto
Size	50 mm
Body Material	Bronze
End Connection	Screwed End
Item Code	1035 A
Suitable For	Water Oil
Additional Details	Screw / Bolt: Carbon Steel (Zinc Plated) Washer: Carbon Steel (Zinc Plated) Handwheel: Sheet Metal (Powder Coated) / Cast Iron Stem: Forged Brass Gland Nut: Forged Brass Gland: Forged Brass Gland Packing: PTFE Stuffing Box: Forged Brass Bonnet: Forged Brass Wedge: Bronze Name Plate: Aluminium End Type: Female Screwed
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	2 inch
Test Pressure	Shell:2.4 MPa Seat:1.6 MPa
Type	Screwed
Working Temperature	45 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Gate Valve
Dimensions LxWxH	32x20x6 cm
Weight	15.9 kg

Show All Specifications

Product Details

The Zoloto 50mm Class-2 Bronze Screwed Gate Valve, 1035 A is a top-of-the-line gate valve designed for durability and efficiency. With screwed female ends to IS 554 / BS 21 / ISO 7, this valve ensures a secure connection. The inside screw, non-rising stem, and integral seat provide smooth operation and reliable performance. The solid wedge and premium quality PTFE gland packing uphold the valve's integrity. The designed sheet metal handwheel allows for a firm grip and convenient operation. Suitable for water and oil applications, this valve is crafted to meet design standard IS 778 and Class-1 requirements.
