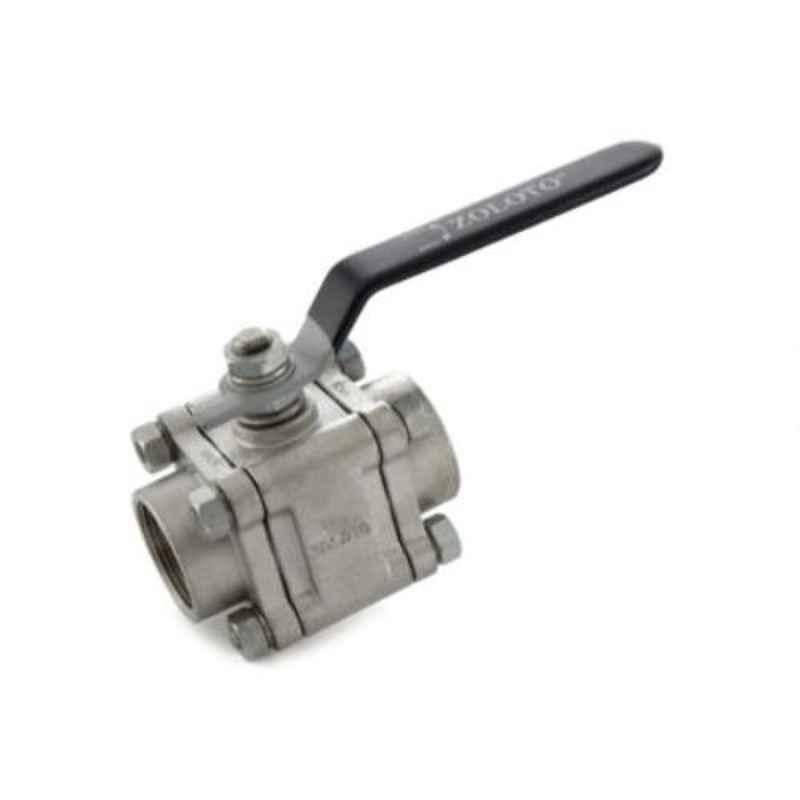

Zoloto 50mm Stainless Steel Class-150 Screwed Three Piece Design Ball Valve, 1080A

Name: Zoloto 50mm Stainless Steel Class-150 Screwed Three Piece Design Ball Valve, 1080A
Brand: Zoloto
SKU: MSNR50N42DJ251
Price: 9805 INR
Availability: OutOfStock

₹9,805 (Incl. of all taxes)

₹8,311 + ₹1,494 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Design Standard Bs En Iso 17292 (Bs 5351).
Screwed Female Ends to Bspt / Npt / Socket Weld.
Reduced Bore & Three Piece Design.

Product Specifications

Brand	Zoloto
Bore Type	Reduce
Nominal Size	50 mm
Number of Ways	3
Body Material	Stainless Steel
Body Test Pressure	440 psig
End Connection	Screwed End
Item Code	1080A
Seat Test Pressure	300 psig
Thread Type	BSP Female
Additional Details	Ball: Stainless Steel Thrust Washer: PTFE 35% Carbon Filled Stem: Stainless Steel Packing Ring: PTFE 35% Carbon Filled Gland: Stainless Steel Cup Washer: Stainless Steel Nut: H.T. Steel Spring Washer: Spring Steel / Stainless Steel Lever: Carbon Steel Body Seat Ring: PTFE Gasket: PTFE
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	2 inch
Suitable For	Water, Oil, Steam, Air & Gas
Type	Screwed
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Ball Valve
Dimensions LxWxH	42x25x8 cm
Weight	20.8 kg

Show All Specifications

Product Details

The Zoloto 50mm Stainless Steel Class-150 Screwed Three Piece Design Ball Valve, 1080A is a high-quality ball valve designed for reliable performance in industrial applications. With a seat test pressure of 300 psig and a body test pressure of 440 psig, this valve is built to withstand high pressure environments. The screw female ends to BSPT/NPT/socket weld make installation easy, while the reduced bore and three-piece design ensure smooth operation. Meeting design standard BS EN ISO 17292 (BS 5351), this 2-inch valve is ideal for use in systems with working temperatures up to 220 deg C. Choose Zoloto for durable, efficient ball valves that deliver exceptional performance.
