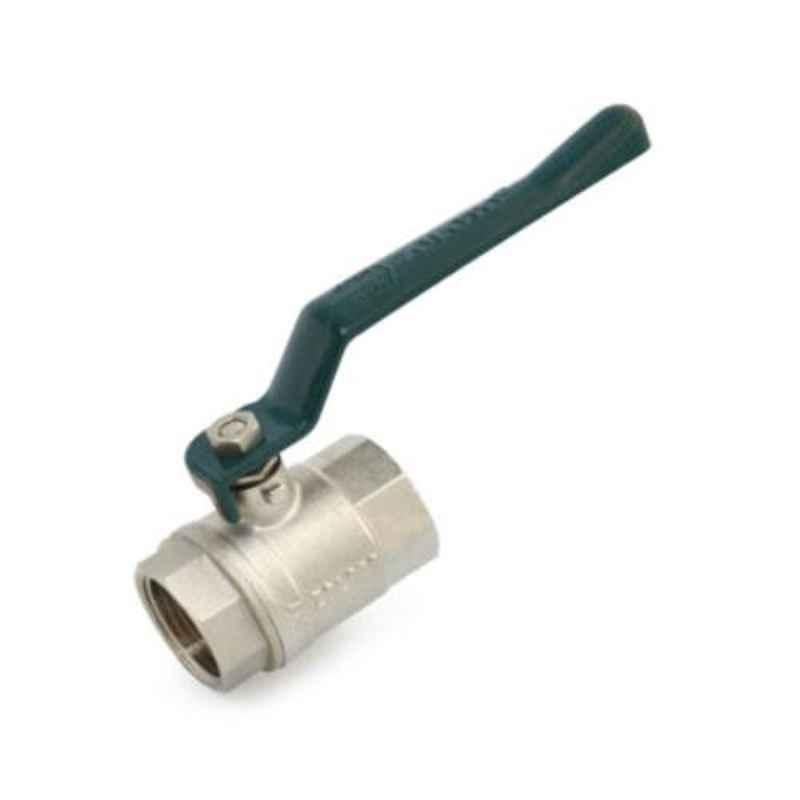

Zoloto 65mm Two Piece Design Forged Brass Screwed Ball Valve, 1008B

Name: Zoloto 65mm Two Piece Design Forged Brass Screwed Ball Valve, 1008B
Brand: Zoloto
SKU: MSN4K6Z38033KQ
Price: 8601 INR
Availability: OutOfStock

₹8,601 (Incl. of all taxes)

₹7,288 ₹1,313 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Screwed Female Ends to is 554 / Bs 21 / Iso 7.
Full Bore, Two Piece Design.
Quarter Turn, Lever Operated.
Provided with Forged Brass Hard Chrome Plated Ball.
Premium Quality Ptfe Gland Packing & Seating..

Show All Key Features

Product Specifications

Brand	Zoloto
Bore Type	Full
Nominal Size	65 mm
Number of Ways	2
Body Material	Forged Brass
Design	Two Piece
End Connection	Screwed End
Item Code	1008 B
Mode of Operation	Lever Operated
Seat Test Pressure	225 psig
Thread Type	BSP Female
Additional Details	Bonnet Material: Forged Brass Body Seat Ring Material: PTFE Thrust Washer Material: PTFE Gland Packing Material: PTFE Stem Material: Forged Brass Gland Material: Forged Brass Lever Material: Aluminium Alloy / Mild Steel Nut Material: Brass (Chrome Plated)
Ball Material	Forged Brass
Finish	Chrome Finish
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	2-1/2 inch
Suitable For	Water, Oil
Test Pressure	Shell: 350 psig Seat: 225 psig
Type	Screwed
Working Pressure	Shell: 350 psig Seat: 225 psig
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Ball Valve
Dimensions LxWxH	33x20x3 cm
Weight	16.2 kg

Show All Specifications

Product Details

The Zoloto Ball Valve is a high-quality product designed for optimal performance and durability. With its forged brass body material, this ball valve offers superior strength and resistance to corrosion. The Screwed End connection ensures a secure and leak-proof fit, providing peace of mind during operation. The BSP Female thread type ensures compatibility with a wide range of fittings and pipes. With a nominal size of 65 mm, this ball valve is suitable for various applications in commercial and industrial settings. To ensure safety and reliability, the Zoloto Ball Valve has undergone rigorous seat and body test pressures. The seat test pressure has been tested up to 225 psig, ensuring a tight seal and preventing any leakage. Additionally, the body test pressure has been tested up to 350 psig, guaranteeing the valve's structural integrity under high pressure conditions. Whether it's controlling flow in plumbing systems, HVAC systems, or other industrial applications, the Zoloto Ball Valve offers exceptional performance and reliability.
