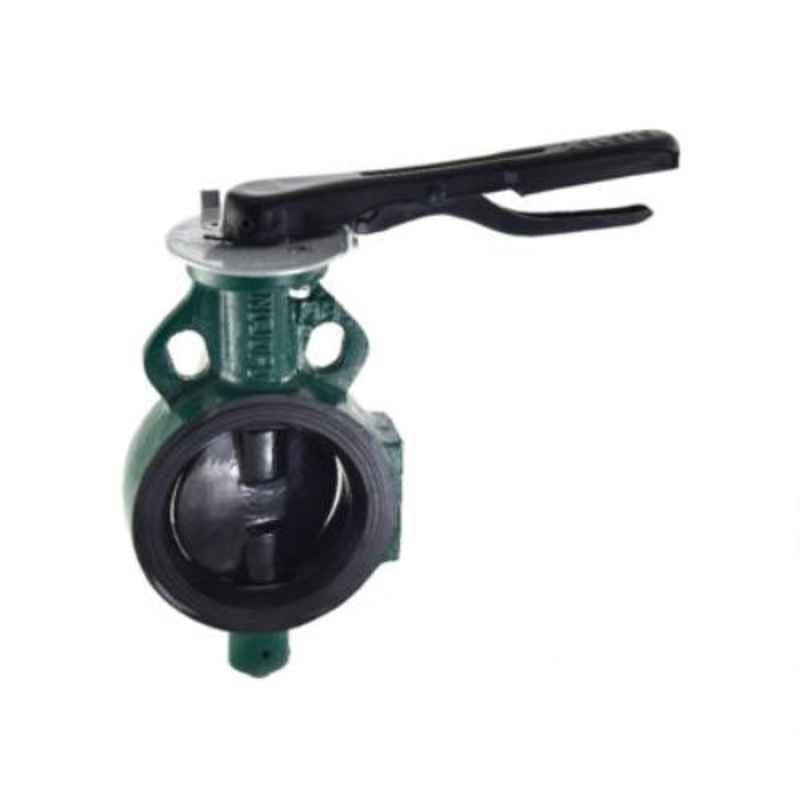

Zoloto 65mm PN-1.6 S.G Iron Disc Wafer Type Butterfly Valve, 1078

Name: Zoloto 65mm PN-1.6 S.G Iron Disc Wafer Type Butterfly Valve, 1078
Brand: Zoloto
SKU: MSN8KLPGEGXN5V
Price: 3572 INR
Availability: OutOfStock

₹3,572 (Incl. of all taxes)

₹3,027 ₹545 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Design Standard is 13095 / Bs En 593.
Wafer Type, Lever Operated & S.G Iron Construction.
S.G Iron Disc Which is Accurately Guided Between the Two Stems..

Product Specifications

Brand	Zoloto
End Connection	Wafer Type
Size	65 mm
Body Material	S.G Iron
Disc Type	SG Iron
Item Code	1078
Pressure Rating	PN 1.6
Suitable For	Water
Additional Details	Flow Control Lever: Carbon Steel (Powder Coated) Notch Plate: Carbon Steel (Powder Coated) Packing Bush: PTFE / Bronze Upper Stem: Stainless Steel Body: S.G Iron Disc: S.G Iron Name Plate: Aluminium Bush: PTFE / Bronze Lower Stem: Stainless Steel O-Ring: Nitrile Rubber Dowel Pin: Spring Steel C Sunk Screw & Nuts: Carbon Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Operating Mode	Lever Operated
Size (Inch)	2-1/2 inch
Standards	IS 13095 / BS EN 593 (BS 5155)
Test Pressure	Shell:2.4 MPa Seat:1.76 MPa
Type	Wafer
Working Pressure	1.6 MPa
Working Temperature	90 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Butterfly Valve
Dimensions LxWxH	15x9x4 cm
Weight	7.4 kg

Show All Specifications

Product Details

The Zoloto 65mm PN-1.6 S.G Iron Disc Wafer Type Butterfly Valve, 1078 is a high-quality valve designed for durability and performance. With a wafer type end connection and lever-operated operating mode, this valve is easy to use and reliable. The 65mm size and 2.1/2 inch size (inch) make it versatile for various applications. Constructed from SG Iron with a design standard of 13095 / BS EN 593, this valve is built to last. The S.G Iron disc is accurately guided between the two stems for smooth operation. Trust Zoloto to deliver top-notch quality with this model 1078 butterfly valve.
