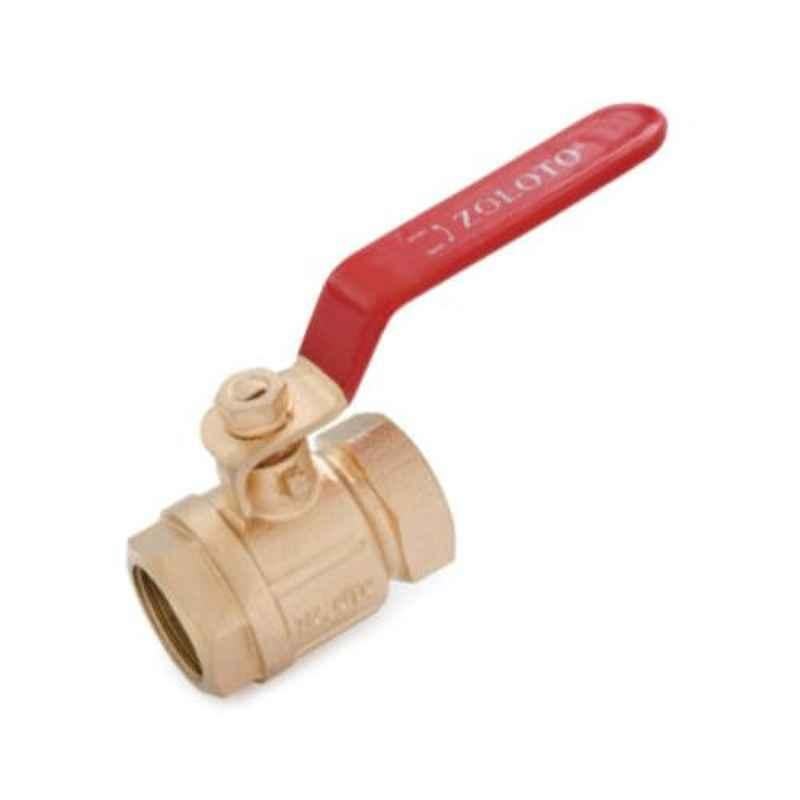

Zoloto 80mm Bronze Screwed Ball Valve, 1008

Name: Zoloto 80mm Bronze Screwed Ball Valve, 1008
Brand: Zoloto
SKU: MSN8KLPGEGNN5V
Price: 14388 INR
Availability: OutOfStock

₹14,388 (Incl. of all taxes)

₹12,194 + ₹2,194 GST

MRP ₹20,529 29% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Screwed Female Ends to is 554 / Bs 21 / Iso 7.
Full Bore, Two Piece Design.
Quarter Turn, Lever Operated.
Provided with Stainless Steel Ball.
Premium Quality Ptfe Gland Packing & Seating..

Show All Key Features

Product Specifications

Brand	Zoloto
Bore Type	Full
Nominal Size	80 mm
Number of Ways	2
Body Material	Bronze
Design	Two Piece
End Connection	Screwed End
Item Code	1008
Seat Test Pressure	225 psig
Thread Type	BSP Female
Additional Details	Bonnet Material: Bronze Body Seat Ring Material: PTFE Thrust Washer Material: PTFE Gland Packing Material: PTFE Stem Material: Stainless Steel Gland Material: Forged Brass Lever Material: Mild Steel Nut Material: Carbon Steel
Ball Material	Stainless Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	3 inch
Standards	Stem: ASTM A276 Type 410 Gland: IS 6912 Gr. FLB Bonnet: IS 318 GR. LTB 2 / IS 6912 Gr. FLB Body: IS 318 Gr. LTB 2 Ball: ASTM A276 Type 304 / ASTM A351 Gr. CF8
Suitable For	Water, Oil
Testing Pressure	Shell: 350 psig
Type	Screwed
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Ball Valve
Dimensions LxWxH	80x48x14 cm
Weight	39.7 kg

Show All Specifications

Product Details

Upgrade your plumbing system with the Zoloto 80mm Bronze Screwed Ball Valve, model 1008. This high-quality ball valve is designed for durability and reliability, featuring a two-piece design and premium bronze body material. The valve is equipped with a stainless steel ball and PTFE gland packing for superior performance. With screwed female ends to IS 554/BS 21/ISO 7 standards, this valve is easy to install and operate. The quarter-turn lever operation makes it convenient to control the flow of water or gas. Trust Zoloto for exceptional quality and craftsmanship in your plumbing projects.
