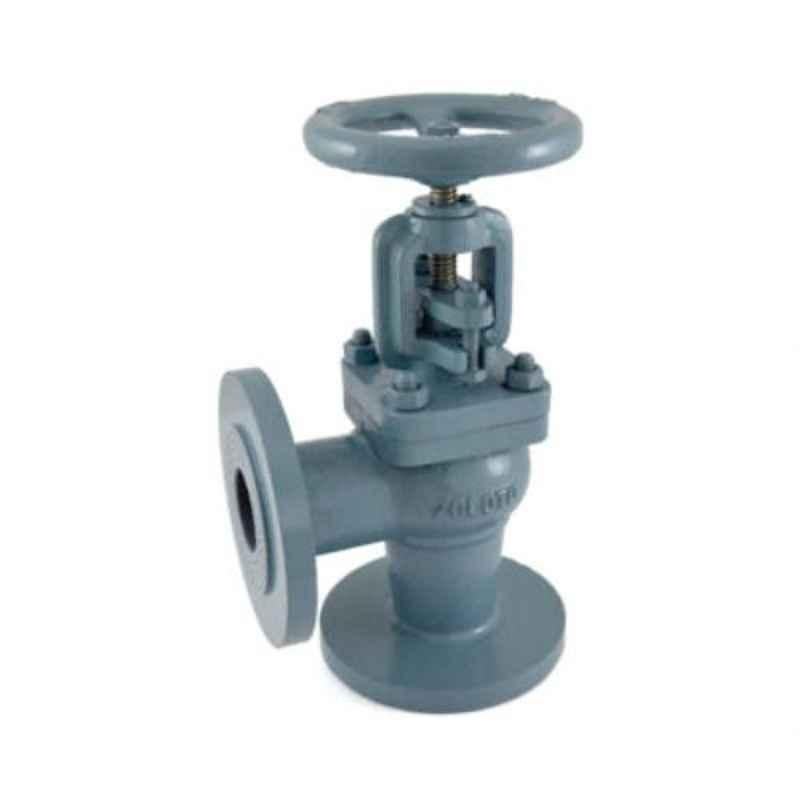

Zoloto 80mm Cast Iron Angle Pattern Flanged Globe Steam Stop Valve, 1066

Name: Zoloto 80mm Cast Iron Angle Pattern Flanged Globe Steam Stop Valve, 1066
Brand: Zoloto
SKU: MSN2KM1E34O89V
Price: 10137 INR
Availability: OutOfStock

₹10,137 (Incl. of all taxes)

₹8,592 ₹1,545 GST

MRP ₹14,531 30% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Flanged Ends to Din 2533 Pn 16Rf.
Angle Pattern, Outside Screw, Yoke Type & Rising Stem.
Renewable 13% Cr. Stainless Steel Working Parts.
Provision for Re-Packing Under Pressure & Minimum Pressure Drop Inside the Body Due to Streamlined Body Design.

Show All Key Features

Product Specifications

Brand	Zoloto
Body Material	Cast Iron
End Connection	Flanged Ends
Item Code	1066
Material	Nut: Carbon Steel Washer: Carbon Steel Handwheel: Cast Iron Stem: Stainless Steel Yoke Bush: Bronze Locking Screw: Carbon Steel Gland Flange: Cast Iron Bonnet: Cast Iron Gland Packing: Braided Graphited Asbestos Studs: Carbon Steel Nuts: Carbon Steel Gasket: Steam Jointing Sheet
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	80 mm
Size (Inch)	3 inch
Suitable For	Water Steam
Test Pressure	Shell:370 psig Seat:185 psig
Type	Flanged
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Valve
Dimensions LxWxH	61x37x12 cm
Weight	30.1 kg

Show All Specifications

Product Details

The Zoloto 80mm Cast Iron Angle Pattern Flanged Globe Steam Stop Valve, 1066 is a reliable and high-quality product from the Globe Valves category. Manufactured by Zoloto, this valve is designed with flanged ends to Din 2533 Pn 16Rf, ensuring a secure connection. The valve features an angle pattern, outside screw, yoke type & rising stem, and renewable 13% Cr. stainless steel working parts. Additionally, it has provision for re-packing under pressure and minimum pressure drop inside the body due to its streamlined design. Suitable for both water and steam, this valve is a versatile and durable option for your industrial needs.
