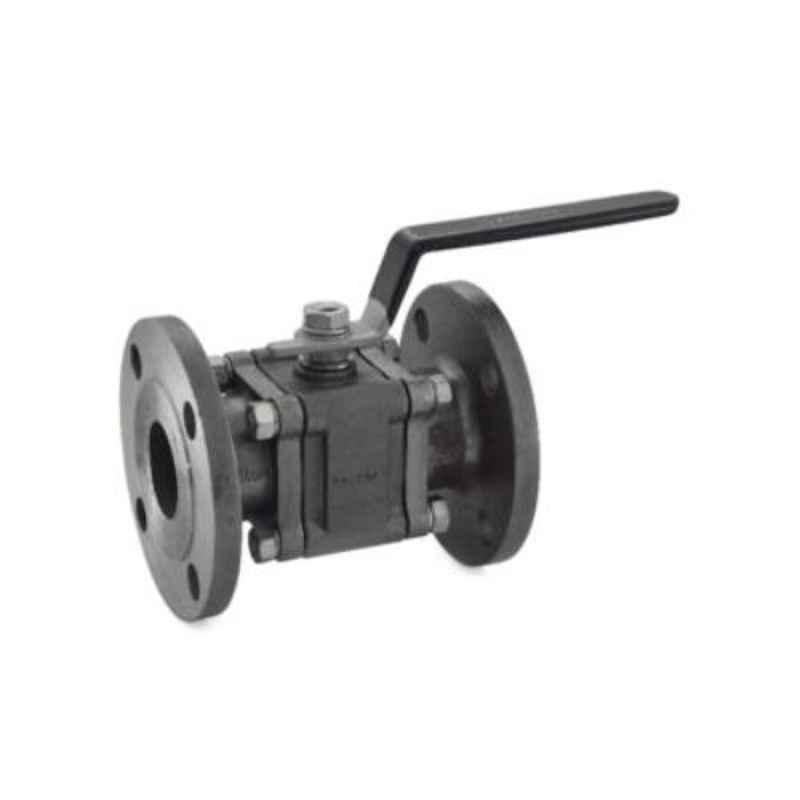

Zoloto 80mm Cast Steel Class-150 Full Bore Flanged Three Piece Design Ball Valve, 1089

Name: Zoloto 80mm Cast Steel Class-150 Full Bore Flanged Three Piece Design Ball Valve, 1089
Brand: Zoloto
SKU: MSNRKREDODQ39N
Price: 16141 INR
Availability: OutOfStock

₹16,141 (Incl. of all taxes)

₹13,677 ₹2,464 GST

MRP ₹22,613 28% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Design Standard Bs En Iso 17292.
Screwed Female Ends to Bsp.
Flanged Ends to Ansi B16.5 Class-150.
Three Piece Design & Superb in Quality & Performance.

Show All Key Features

Product Specifications

Brand	Zoloto
Bore Type	Full
Nominal Size	80 mm
Number of Ways	3
Body Material	Cast Iron
Body Test Pressure	300 psig
End Connection	Flanged End
Item Code	1089
Seat Test Pressure	200 psig
Additional Details	Ball: Stainless Steel Thrust Washer: PTFE 35% Carbon Filled Stem: Stainless Steel Packing Ring: PTFE 35% Carbon Filled Gland: Stainless Steel Cup Washer: Stainless Steel Nut: H.T Steel Spring Washer: Spring Steel / Stainless Steel Lever: Carbon Steel Body Seat Ring: PTFE Gasket: PTFE
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	3 inch
Suitable For	Water, Oil, Steam
Type	Flanged
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Ball Valve
Dimensions LxWxH	93x56x18 cm
Weight	46.2 kg

Show All Specifications

Product Details

The Zoloto 80mm Cast Steel Class-150 Full Bore Flanged Three Piece Design Ball Valve, 1089 is a top-of-the-line product in the ball valves category. With a seat test pressure of 200 psig, this valve is designed for reliability and long-lasting performance. The flanged end connections make installation a breeze, while the cast iron body ensures durability. This valve is built to withstand high temperatures up to 220 deg C, making it suitable for a variety of industrial applications. The design standard BS EN ISO 17292, along with the high-quality construction, guarantees outstanding performance. Upgrade to the Zoloto 1089 for superior results.
