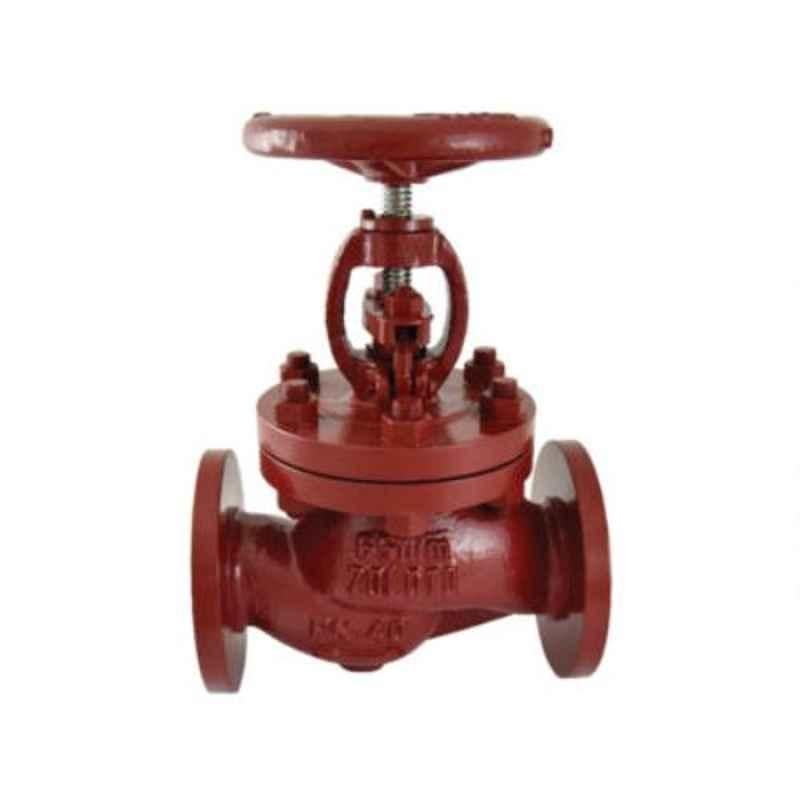

Zoloto 80mm Cast Steel Flanged Globe Steam Stop Valve, 1071

Name: Zoloto 80mm Cast Steel Flanged Globe Steam Stop Valve, 1071
Brand: Zoloto
SKU: MSNQ94PGQGWNK0
Price: 19669 INR
Availability: OutOfStock

₹19,669 (Incl. of all taxes)

₹16,668 ₹3,001 GST

MRP ₹28,195 30% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Flanged Ends to Din 2545 Pn�40.
Straight Pattern, Outside Screw, Yoke Type, Rising Stem & Bolted Bonnet.
Minimum Pressure Drop Inside the Body Due to Streamlined Body Design & Handwheel Operated..

Product Specifications

Brand	Zoloto
Body Material	Cast Iron
End Connection	Flanged Ends
Item Code	1071
Material	Nut: Carbon Steel Washer: Carbon Steel Handwheel: Malleable Iron Stem: Stainless Steel Yoke Bush: Aluminium Bronze Locking Screw: Carbon Steel Gland Flange: Cast Steel Gland: Stainless Steel Bonnet: Cast Steel Gland Packing: Braided�Graphite Gasket: Spiral Wound S.S (Type 316) Graphite�Filled Back Seat Bush: Aluminium Bronze
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	80 mm
Size (Inch)	3 inch
Suitable For	Water Oil Steam
Test Pressure	Shell:870 psig Seat:580 psig
Type	Flanged
Working Temperature	425 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Globe Valve
Dimensions LxWxH	117x71x20 cm
Weight	58.5 kg

Show All Specifications

Product Details

The Zoloto 80mm Cast Steel Flanged Globe Steam Stop Valve, model number 1071, is a top-of-the-line valve designed to handle high temperatures and pressures with ease. This globe valve is flanged for easy installation and features a 3-inch size, making it suitable for a variety of applications. With a working temperature of 425 degrees Celsius, this valve is ideal for use with water, oil, and steam. Its cast iron body construction ensures durability, while its flanged ends to Din 2545 Pn40, straight pattern, and bolted bonnet design provide reliable performance. Operated by a handwheel, this valve offers precise control and minimum pressure drop. Trust Zoloto for quality globe valves that deliver superior performance and reliability.
