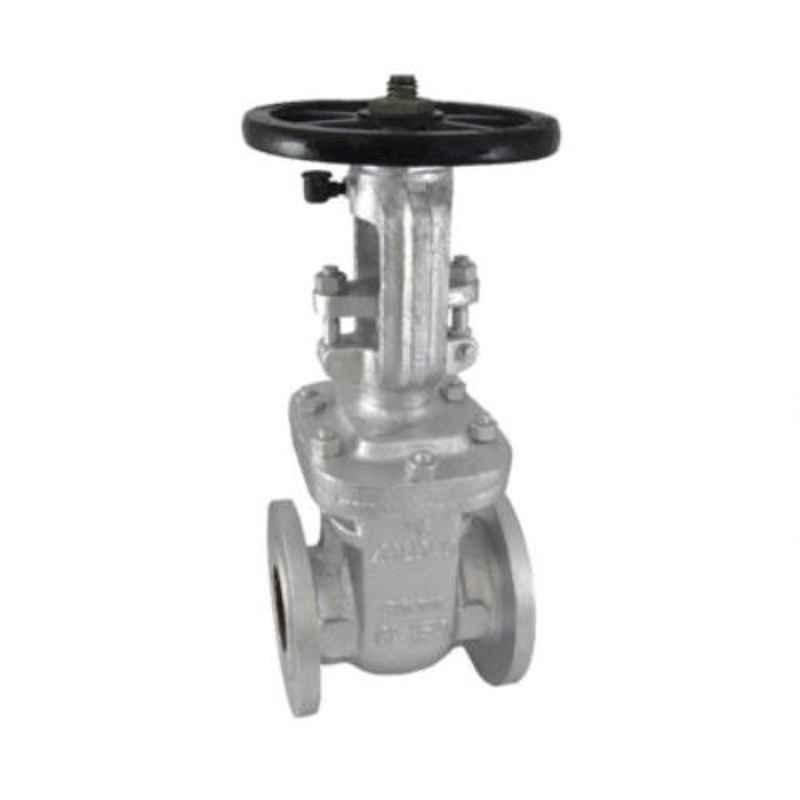

Zoloto 80mm Cast Steel Yoke Type Class-150 Flanged Gate Valve, 1077

Name: Zoloto 80mm Cast Steel Yoke Type Class-150 Flanged Gate Valve, 1077
Brand: Zoloto
SKU: MSNPKEP2RXRQ9G
Price: 17300 INR
Availability: OutOfStock

₹17,300 (Incl. of all taxes)

₹14,660 ₹2,640 GST

MRP ₹24,789 30% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Design Standard�Bs En Iso 10434 / Api 600.
Bolted Bonnet, Outside Screw, Yoke Type & Rising Stem.

Product Specifications

Brand	Zoloto
Size	80 mm
Body Material	Cast Iron
End Connection	Flanged End
Item Code	1077
Suitable For	Water Oil Steam
Additional Details	Body Seat Ring: Stainless Steel Wedge: Cast Steel Wedge Facing Ring: Stainless Steel Stem: Stainless Steel Studs: Alloy Steel Nuts: H.T. Steel Gasket: Steam Jointing Sheet Back Seat Bush: Aluminium Bronze Gland Packing: Braided Graphite Pin for Eye Bolt: Stainless Steel Gland: Stainless Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	3 inch
Test Pressure	Shell:425 psig Seat:150
Type	Yoke
Working Temperature	425 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Valve
Dimensions LxWxH	103x62x21 cm
Weight	51.4 kg

Show All Specifications

Product Details

The Zoloto 80mm Cast Steel Yoke Type Class-150 Flanged Gate Valve, 1077 is a high-quality gate valve designed for a variety of industrial applications. Made with durable cast iron body material, this valve is suitable for water, oil, and steam, with a working temperature of up to 425 degrees Celsius. The valve features a yoke type design, bolted bonnet, outside screw, and rising stem, conforming to design standards BS EN ISO 10434/API 600. This reliable and versatile gate valve is perfect for ensuring smooth and efficient flow control in your system. Choose Zoloto for quality and performance.
