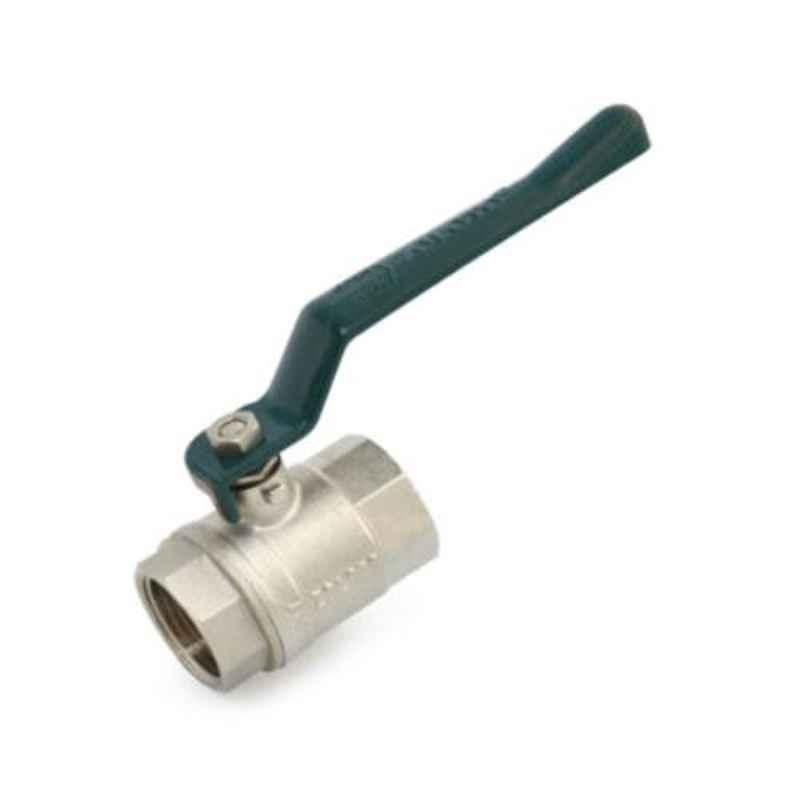

Zoloto 80mm Two Piece Design Forged Brass Screwed Ball Valve, 1008B

Name: Zoloto 80mm Two Piece Design Forged Brass Screwed Ball Valve, 1008B
Brand: Zoloto
SKU: MSNQ94PGQXONK0
Price: 20642 INR
Availability: OutOfStock

₹10,321 (Incl. of all taxes)

₹8,744 + ₹1,577 GST

MRP ₹14,784 30% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Screwed Female Ends to is 554 / Bs 21 / Iso 7.
Full Bore, Two Piece Design.
Quarter Turn, Lever Operated.
Provided with Forged Brass Hard Chrome Plated Ball.
Premium Quality Ptfe Gland Packing & Seating..

Show All Key Features

Product Specifications

Brand	Zoloto
Bore Type	Full
Nominal Size	80 mm
Number of Ways	2
Body Material	Forged Brass
Design	Two Piece
End Connection	Screwed End
Item Code	1008 B
Mode of Operation	Lever Operated
Seat Test Pressure	225 psig
Thread Type	BSP Female
Additional Details	Bonnet Material: Forged Brass Body Seat Ring Material: PTFE Thrust Washer Material: PTFE Gland Packing Material: PTFE Stem Material: Forged Brass Gland Material: Forged Brass Lever Material: Aluminium Alloy / Mild Steel Nut Material: Brass (Chrome Plated)
Ball Material	Forged Brass
Finish	Chrome Finish
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	3 inch
Suitable For	Water, Oil
Test Pressure	Shell: 350 psig Seat: 225 psig
Type	Screwed
Working Pressure	Shell: 350 psig Seat: 225 psig
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Ball Valve
Dimensions LxWxH	56x34x9 cm
Weight	27.9 kg

Show All Specifications

Product Details

The Zoloto Ball Valve is a top-of-the-line product specially designed for high-performance applications. Crafted from premium quality Forged Brass, this valve guarantees exceptional durability and longevity. With its BSP Female thread type, it ensures a secure and reliable connection, minimizing the risk of leaks or malfunctions. The valve features a Screwed End end connection, providing ease of installation and maintenance. With a nominal size of 80 mm, this ball valve is suitable for a wide range of industrial applications. It has been thoroughly tested to ensure superior performance. The seat test pressure of 225 psig ensures optimum flow control and prevents any leakage. Additionally, the body test pressure of 350 psig guarantees the valve's reliability and integrity even under high-pressure conditions. The Zoloto Ball Valve is known for its precision engineering and precise control, making it an ideal choice for industrial processes.
