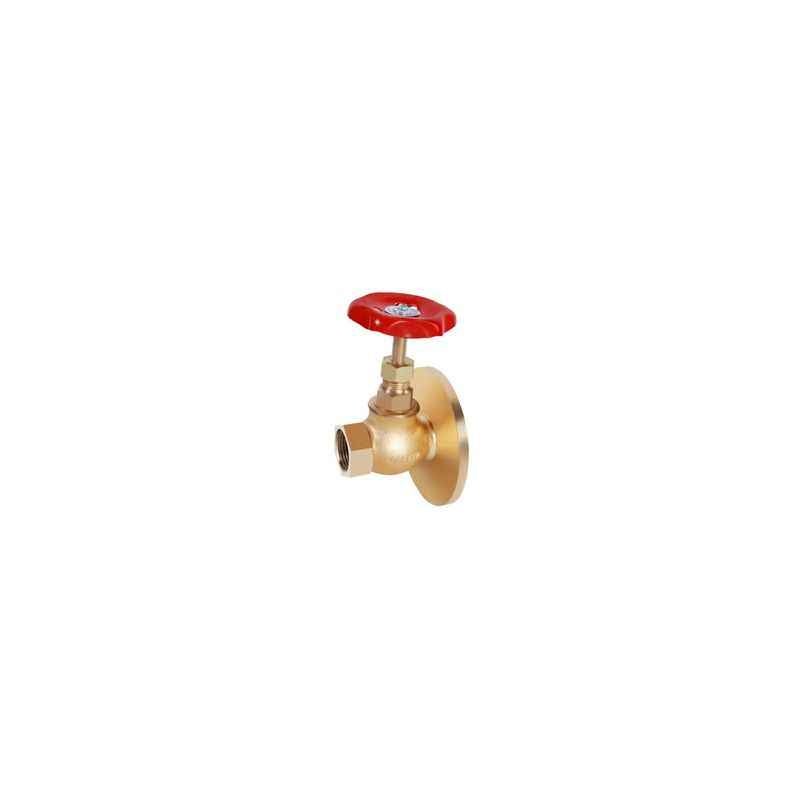

Zoloto 15mm Bronze Globe Valve (One Side Flanged) With PTFE Seat, 1004

Name: Zoloto 15mm Bronze Globe Valve (One Side Flanged) With PTFE Seat, 1004
Brand: Zoloto
SKU: MSNJZNDP8M0S
Price: 1749 INR
Availability: OutOfStock

₹1,749 (Incl. of all taxes)

₹1,482 ₹267 GST

MRP ₹2,489 29% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Zoloto
Body Material	Bronze
Item Code	1004
Material	Screw/Bolt: Carbon Steel (Zinc Plated) Washer: Carbon Steel (Zinc Plated) Handwheel: Sheet Metal (Powder Coated) Stem: Forged Brass Gland Nut: Forged Brass Gland: Forged Brass Gland Packing: PTFE Bonnet: Bronze Disc: Bronze Disc Nut: Bronze Name Plate: Aluminium Disc Facing: PTFE Retaining Nut: Forged Brass Split Pin: Brass Washer (Optional): Brass Sheet
Notes	This Item is Not Returnable Image is only for refrence purpose
Seat Test Pressure	225 psig
Size	15 mm
Size (Inch)	1/2 inch
Specifications	Inlet Inside Flanged To BS 10 Table D,Outlet Side Screwed Female Ends To IS:554/BS 21/ISO 7 Inside Screw,Rising Stem,Screwed In Bonnet,Integral Sheet Provided With Unbrakable Sheet Metal High Quality,Gland PTFE Packing Medium Pattern
Standards	Stem: IS 6912 Gr. FLB Gland Nut: IS 6912 Gr. FLB Gland: IS 6912 Gr. FLB Bonnet: IS 318 Gr. LTB2 Body: IS 318 Gr. LTB2 Disc: IS 318 Gr. LTB2 Disc Nut: IS 318 Gr. LTB2 Retaining Nut: IS 6912 Gr. FLB
Testing Pressure	Shell: 340 psig
Type	Flanged
Working Temperature	225 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Valve
Dimensions LxWxH	10x6x15 cm
Weight	4.7 kg

Show All Specifications

Product Details

Upgrade your plumbing system with the Zoloto 15mm Bronze Globe Valve with PTFE seat, model 1004. This one side flanged valve is designed for efficient flow control and boasts a seat test pressure of 225 psig. The durable bronze body can withstand working temperatures of up to 225 degrees Celsius, making it ideal for a variety of applications. Tested to a shell pressure of 340 psig, this 1/2 inch valve is sure to provide reliable performance for years to come. Trust Zoloto for quality globe valves that deliver exceptional results.

Browse through the extensive list of Globe Valves at Moglix. Shop online for other Zoloto Globe Valves. available at Moglix in the lowest price range.
