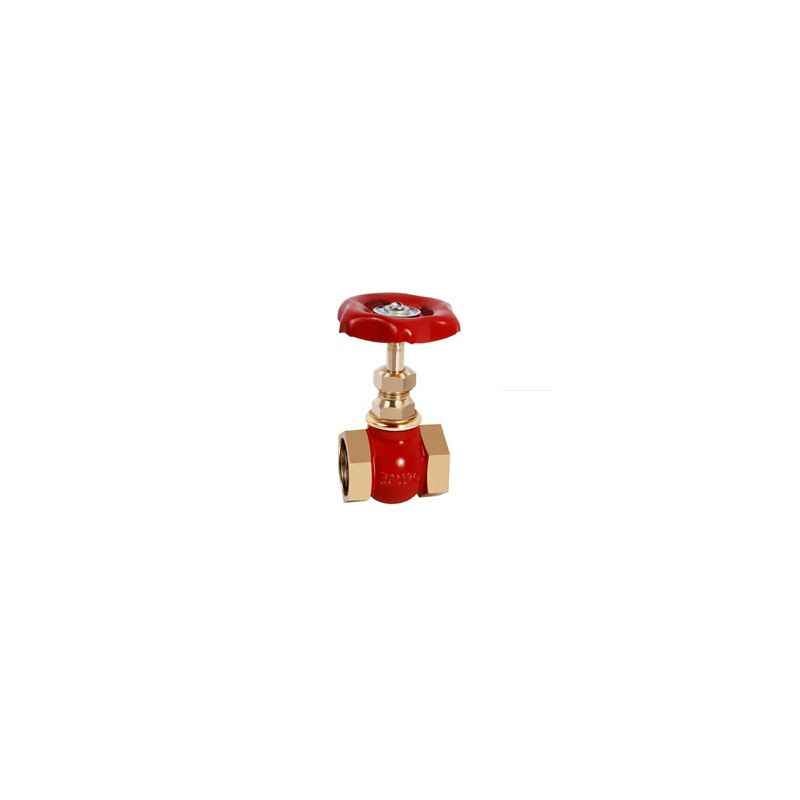

Zoloto 15mm Bronze Needle Valve (Screwed), 1005

Name: Zoloto 15mm Bronze Needle Valve (Screwed), 1005
Brand: Zoloto
SKU: MSNJ8HWT8M0S
Price: 533 INR
Availability: OutOfStock

₹533 (Incl. of all taxes)

₹451 ₹82 GST

MRP ₹685 22% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Zoloto
Size	15 mm
Body Material	Bronze
Item Code	1005
Material	Screw/Bolt: Carbon Steel (Zinc Plated) Washer: Carbon Steel (Zinc Plated) Handwheel: Sheet Metal (Powder Coated) Stem: Forged Brass Gland Nut: Forged Brass Gland: Forged Brass Gland Packing: PTFE Bonnet: Bronze Name Plate: Aluminium
Notes	This Item is Not Returnable Image is only for refrence purpose
Seat Test Pressure	225 psig
Size (Inch)	1/2 inch
Specifications	Screwed Female Ends To IS:554/BS 21/ISO 7 Inside Screw,Rising Stem,Screwed In Bonnet Needle Type Screwed High Quality,Gland PTFE Packing Medium Pattern
Standards	Stem: IS 6912 Gr. FLB Gland Nut: IS 6912 Gr. FLB Gland: IS 6912 Gr. FLB Bonnet: IS 318 Gr. LTB2 Body: IS 318 Gr. LTB2
Testing Pressure	Shell: 340 psig
Type	Screwed
Working Temperature	225 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Valve
Dimensions LxWxH	3x2x23 cm
Weight	1.3 kg

Show All Specifications

Product Details

The Zoloto Bronze Needle Valve (Screwed),1005,15 mm is a reliable and durable valve that is perfect for controlling flow in various applications. Made by Zoloto, a trusted brand in the industry, this valve features screw female ends to IS:554/BS 21/ISO 7 standards. With an inside screw, rising stem, screwed in bonnet, and needle type screwed design, this valve guarantees high quality and performance. The gland PTFE packing ensures a tight seal, making it suitable for medium pattern use. Trust Zoloto for all your needle valve needs.
