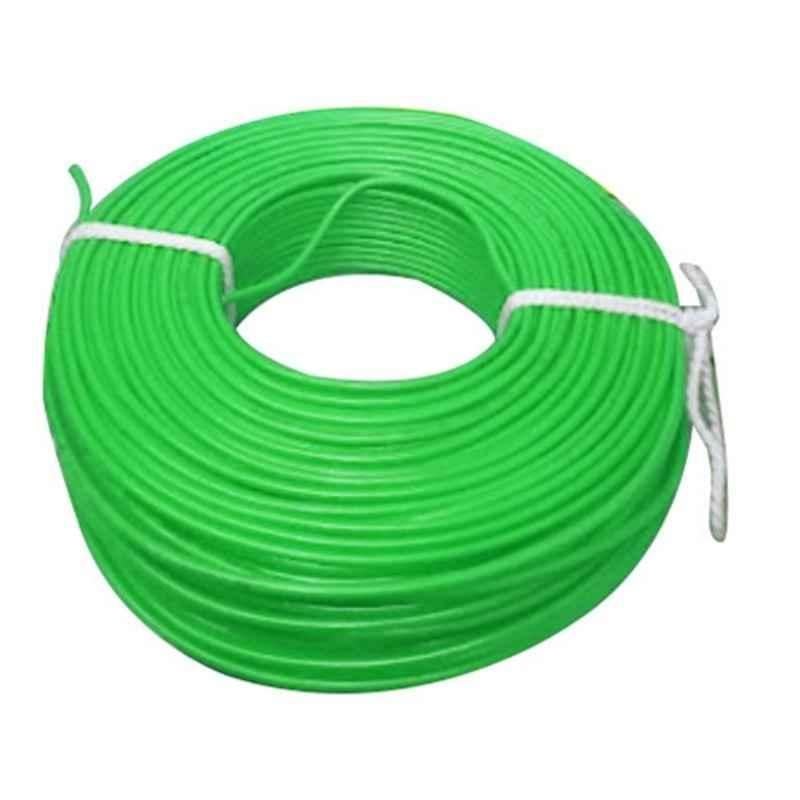

APAR Anushakti 0.75 Sqmm Green EBXL HR FR PVC Insulated Unsheathed Single Core industrial Cable, Length: 90 m

Name: APAR Anushakti 0.75 Sqmm Green EBXL HR FR PVC Insulated Unsheathed Single Core industrial Cable, Length: 90 m
Brand: Apar
SKU: MSNEKPQ0X8VY52
Price: 1148 INR
Availability: OutOfStock

₹1,148 (Incl. of all taxes)

₹972 + ₹176 GST

MRP ₹1,639 29% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Superior ageing resistance with rugged mechanical properties.
Excellent abrasion, cut-through, and crush resistance for longer use.
High insulation resistance: with fr PVC insulation it avoids any electric shock.
Heat & melt resistant: the insulation does not quickly melt while in contact with a hot object.
Environment friendly: the wires & cables are made from 100% environment friendly & recyclable products.
Durable for 50+ years with superior abrasion, cut-through, and crush resistance for long operational life.
Higher current carrying capacity: the wires can withstand an overload condition of approximately over 50% more.
Flame retardant: high oxygen & temperature index to retard fire & self-extinguishing type & does not catch fire on its own.
Energy saving: made from finely drawn annealed bare copper strands using electrolytic grade that conserves energy consumption.

Show All Key Features

Product Specifications

Brand	Apar
Additional Details	Temperature Index: 250 deg C Oxygen Index: > 29% Smoke density (for FRLS): 75% Acid gas generation (for FRLS): 20% Service life years: > 50 Years
Cable Length	90 m
Colour	Green
Conductor Material	Copper
Current Carrying Capacity	In Conduit Trunking: 9 Amp Unenclosed-Clipped Directly to Surface or on cable tray: 14 Amp
Insulation Material	PVC
Insulation Thickness	0.6 mm
Maximum Conductor Resistance at 20 C	26 Ohms
Model	Anushakti
Notes	Images shown here are for illustration purpose only.Actual product size may vary
Number of Cores	Single
Overall Diameter	2.2 mm
Size(Cross Sectional Area)	0.75 Sq.mm
Standards	IS: 694: 1990
Suitable For	Metro Stations, Airports, Shopping Malls, Commercial Complexes, Hospitals, High Rise installations, Fire, Alarms, Emergency Lighting, & places with high human interfaces
Country of origin	India
Manufacturer Details	APAR house, Bldg no. 4 & 5, Corporate Park, V.N. Purav marg, Chembur Mumbai- 400 071. India +9122 - 25263400 +9122 - 67800400 FAX: +9122 - 25246326 corporate@apar.com
Packer Details	APAR house, Bldg no. 4 & 5, Corporate Park, V.N. Purav marg, Chembur Mumbai- 400 071. India +9122 - 25263400 +9122 - 67800400 FAX: +9122 - 25246326 corporate@apar.com
Common/Generic Name	EBXL HR FR PVC Insulated Unsheathed Single Core industrial Cable
Dimensions LxWxH	21.7x21.5x5.7 cm
Weight	750 g

Show All Specifications

Product Details

Introducing the APAR Anushakti 0.75 Sqmm Green EBXL HR FR PVC Insulated Unsheathed Single Core industrial Cable, designed specifically for high tension applications. This durable cable has a length of 90 meters, providing ample coverage for your industrial needs. The brand behind this reliable cable is Apar, known for their quality products.

Please note that the images shown are for illustration purposes only. The actual product size may vary slightly. However, rest assured that the performance and quality of this cable remain uncompromised.

With a temperature index of 250 degrees Celsius, this cable is built to withstand extreme heat and maintain its reliability even in the harshest conditions. The conductor material is made of copper, known for its exceptional conductivity.

The model of this cable is named Anushakti, symbolizing its power and strength. Its overall diameter measures 2.2mm, ensuring easy installation and flexibility. The insulation thickness is 0.6mm, further protecting the cable from potential damage.

Choose the APAR Anushakti 0.75 Sqmm Green EBXL HR FR PVC Insulated Unsheathed Single Core industrial Cable for your high tension applications and experience the trust and dependability offered by Apar.
