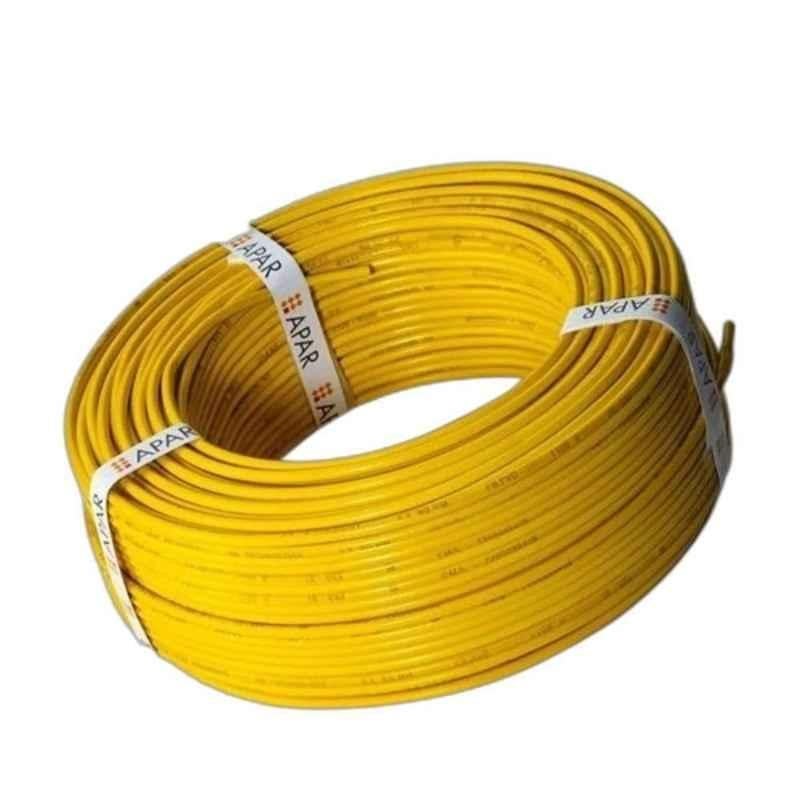

APAR Anushakti 4 Sqmm Yellow EBXL HR FR PVC Insulated Unsheathed Single Core industrial Cable, Length: 90 m

Name: APAR Anushakti 4 Sqmm Yellow EBXL HR FR PVC Insulated Unsheathed Single Core industrial Cable, Length: 90 m
Brand: Apar
SKU: MSNM9XYW64YMKJ
Price: 5281 INR
Availability: OutOfStock

₹5,281 (Incl. of all taxes)

₹4,475 ₹806 GST

MRP ₹7,537 29% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Superior ageing resistance with rugged mechanical properties.
Excellent abrasion, cut-through, and crush resistance for longer use.
High insulation resistance: with fr PVC insulation it avoids any electric shock.
Heat & melt resistant: the insulation does not quickly melt while in contact with a hot object.
Environment friendly: the wires & cables are made from 100% environment friendly & recyclable products.
Durable for 50+ years with superior abrasion, cut-through, and crush resistance for long operational life.
Higher current carrying capacity: the wires can withstand an overload condition of approximately over 50% more.
Flame retardant: high oxygen & temperature index to retard fire & self-extinguishing type & does not catch fire on its own.
Energy saving: made from finely drawn annealed bare copper strands using electrolytic grade that conserves energy consumption.

Show All Key Features

Product Specifications

Brand	Apar
Additional Details	Temperature Index: 250 deg C Oxygen Index: > 29% Smoke density (for FRLS): 75% Acid gas generation (for FRLS): 20% Service life years: > 50 Years
Cable Length	90 m
Colour	Yellow
Conductor Material	Copper
Current Carrying Capacity	In Conduit Trunking: 36 Amp Unenclosed-Clipped Directly to Surface or on cable tray: 58 Amp
Insulation Material	PVC
Insulation Thickness	0.8 mm
Maximum Conductor Resistance at 20 C	4.95 Ohms
Model	Anushakti
Notes	Images shown here are for illustration purpose only.Actual product size may vary
Number of Cores	Single
Overall Diameter	4 mm
Size(Cross Sectional Area)	4 Sq.mm
Standards	IS: 694: 1990
Suitable For	Metro Stations, Airports, Shopping Malls, Commercial Complexes, Hospitals, High Rise installations, Fire, Alarms, Emergency Lighting, & places with high human interfaces
Country of origin	India
Manufacturer Details	APAR house, Bldg no. 4 & 5, Corporate Park, V.N. Purav marg, Chembur Mumbai- 400 071. India +9122 - 25263400 +9122 - 67800400 FAX: +9122 - 25246326 corporate@apar.com
Packer Details	APAR house, Bldg no. 4 & 5, Corporate Park, V.N. Purav marg, Chembur Mumbai- 400 071. India +9122 - 25263400 +9122 - 67800400 FAX: +9122 - 25246326 corporate@apar.com
Common/Generic Name	EBXL HR FR PVC Insulated Unsheathed Single Core industrial Cable
Dimensions LxWxH	21.7x21.5x5.7 cm
Weight	4000 g

Show All Specifications

Product Details

The APAR Anushakti 4 Sqmm Yellow EBXL HR FR PVC Insulated Unsheathed Single Core industrial Cable, with a length of 90 m, is a high tension cable designed for reliable and efficient performance. Manufactured by the renowned brand Apar, this cable is specially built to withstand high temperatures up to a temperature index of 250 deg C. The cable features a sturdy copper conductor material, ensuring excellent conductivity and durability. The model, Anushakti, promises superior quality and reliability. With an overall diameter of 4 mm and insulation thickness of 0.8 mm, this cable is compact and easy to install. Please note that the images are for illustrative purposes only and the actual product size may vary.
